Lámina 45 / 85

Arola, Antoni
2018

Lámina 45 / 85

Arola, Antoni

Biographies

Arola, Antoni

Antoni Arola, the winner of the 2003 National Design Prize, is a prominent figure on today’s design panorama in Spain. His versatility and insightful approach has enabled him to produce brilliant work, whether designing perfume bottles or lamps or undertaking major interior design projects. Arola perceives a symbolism and fascinating way of understanding life and its spaces in cultures vastly different to his own, such as those of Africa, which he incorporates into his work and everyday life. His vision reveals his facet as a sculptor, his passion for drawing and his interest in contemporary art.

Read more
| 2018

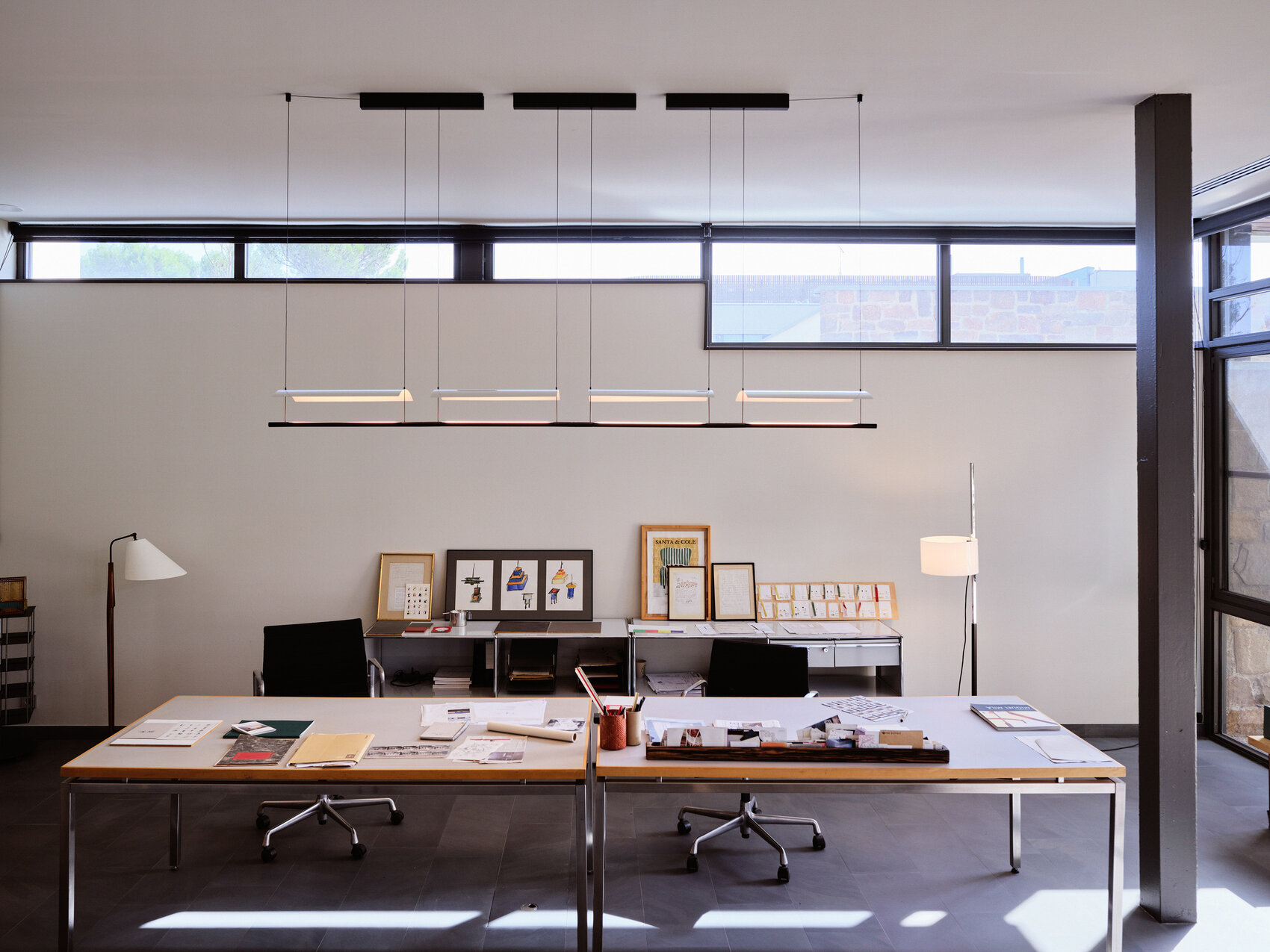

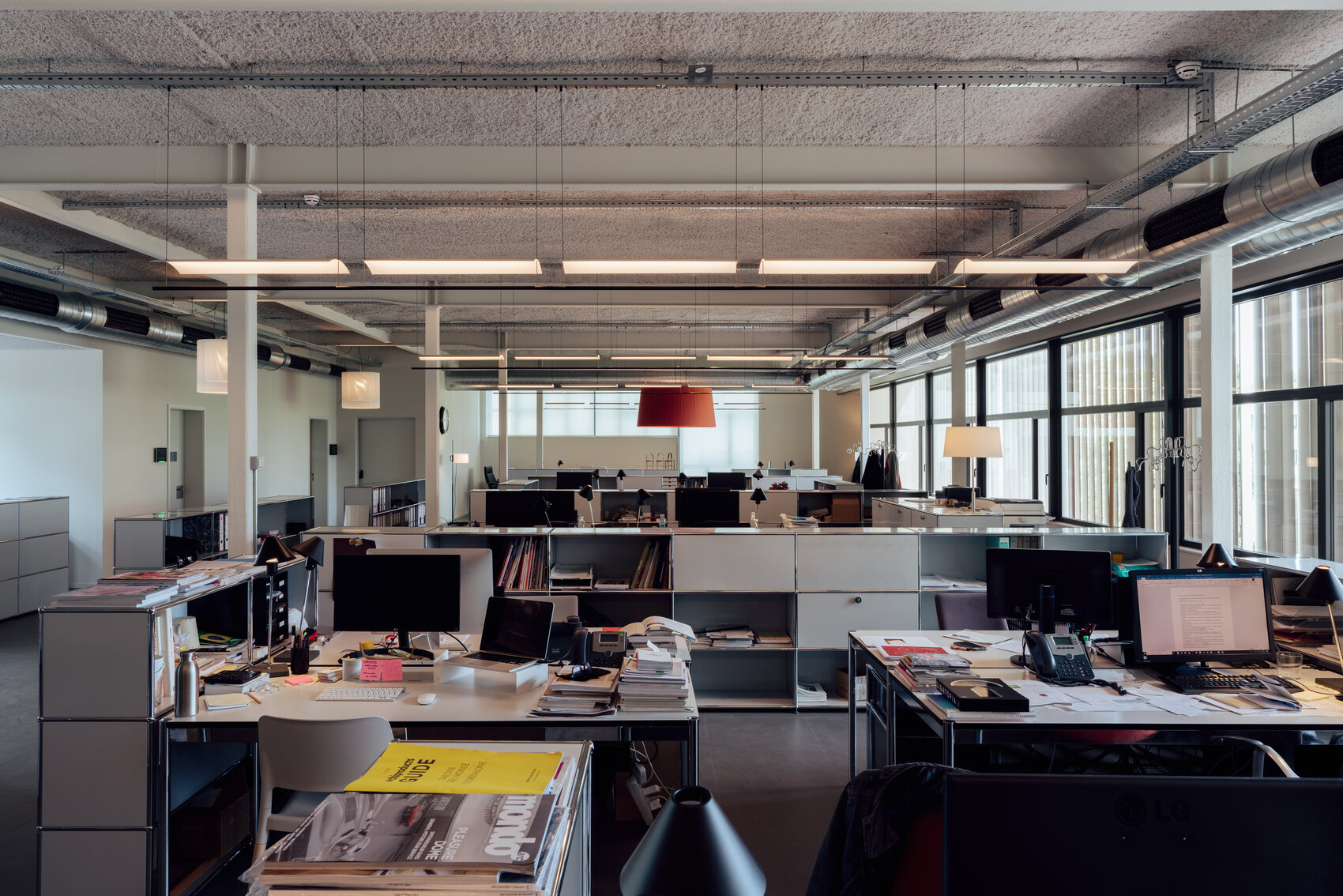

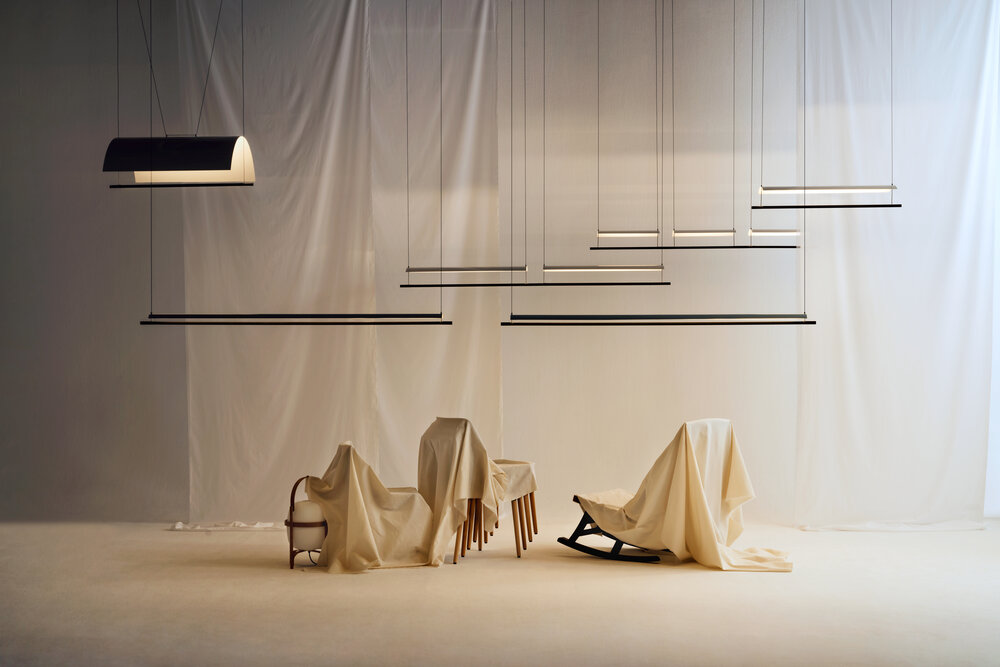

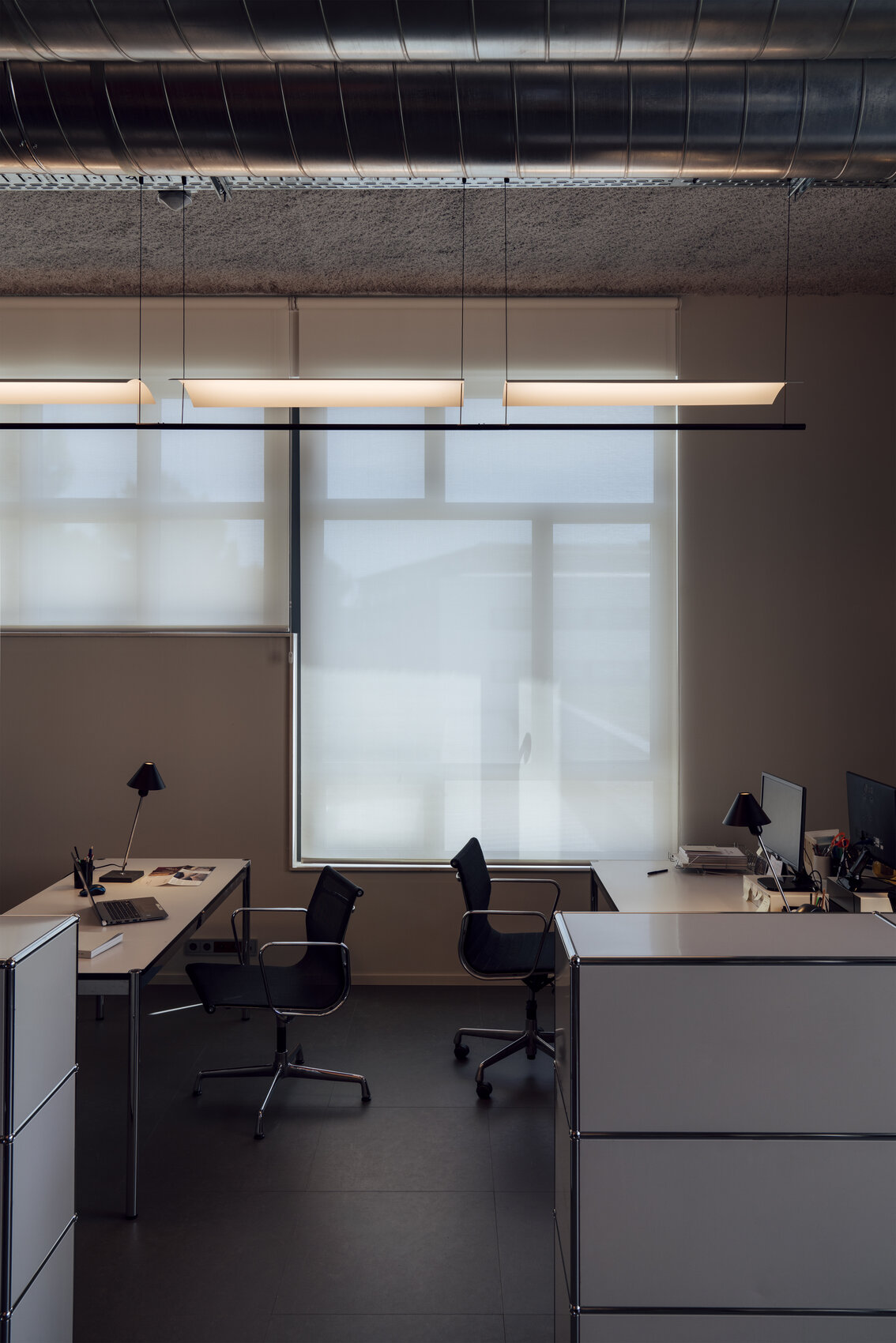

Pendant lamps

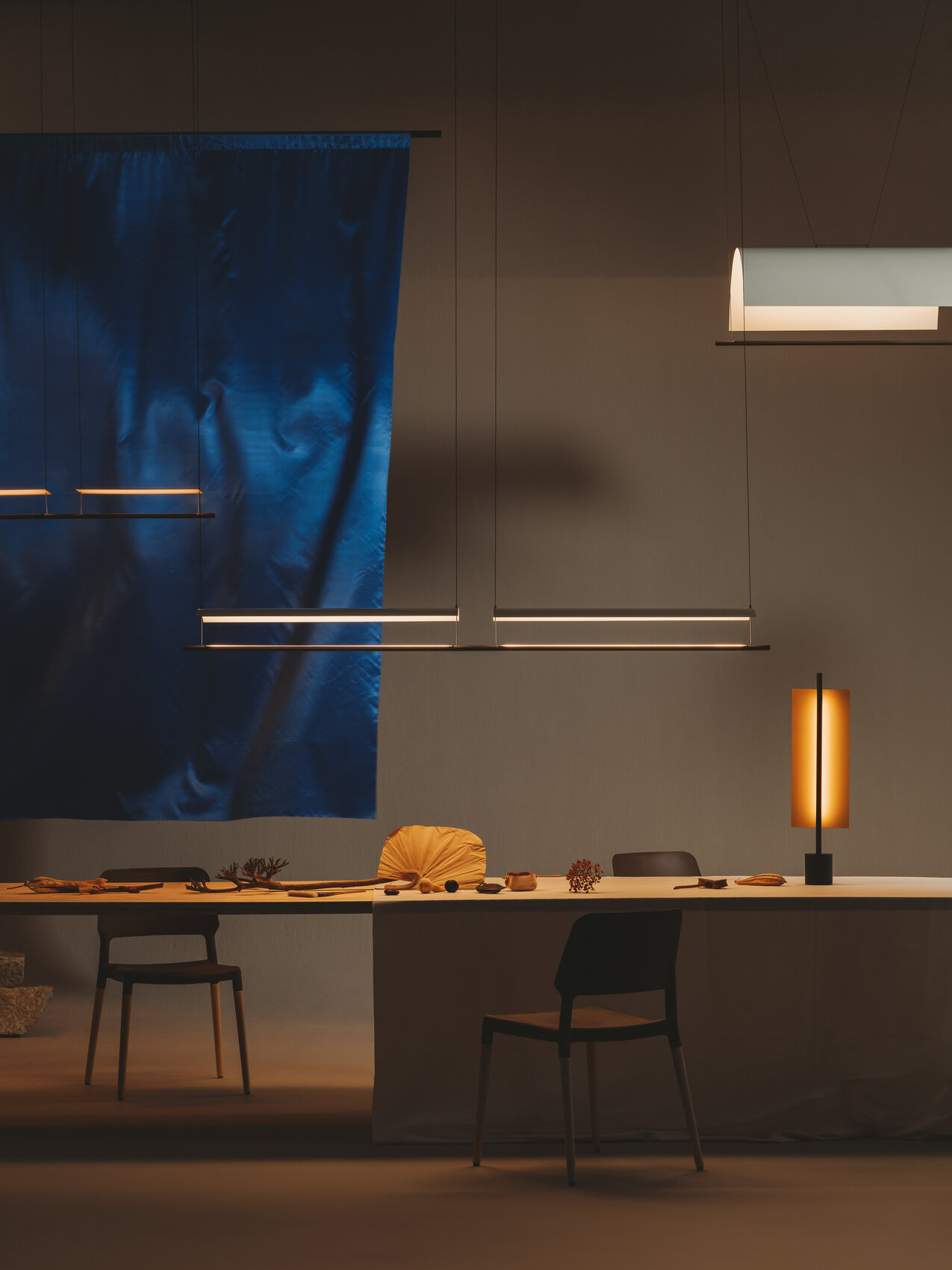

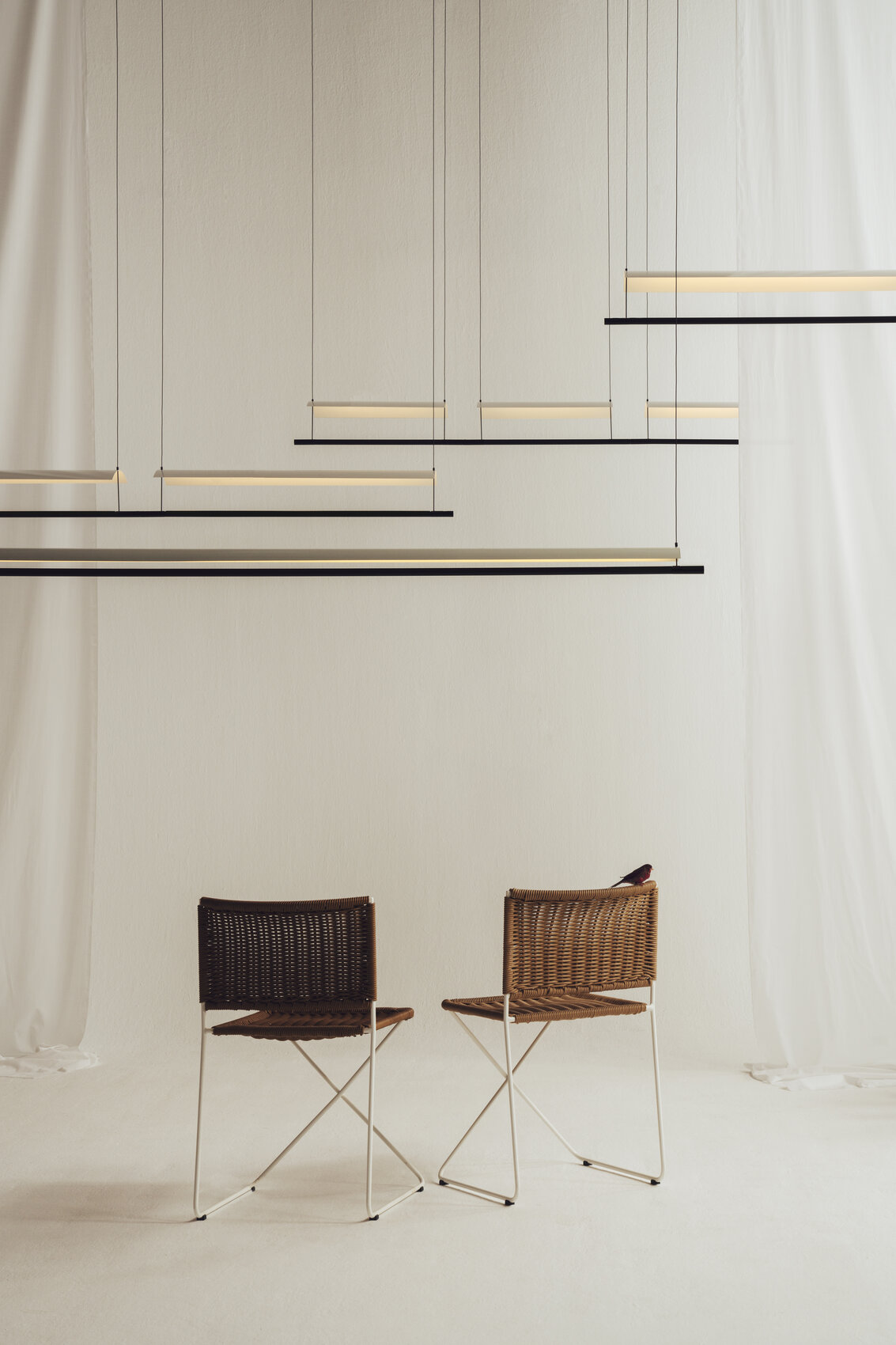

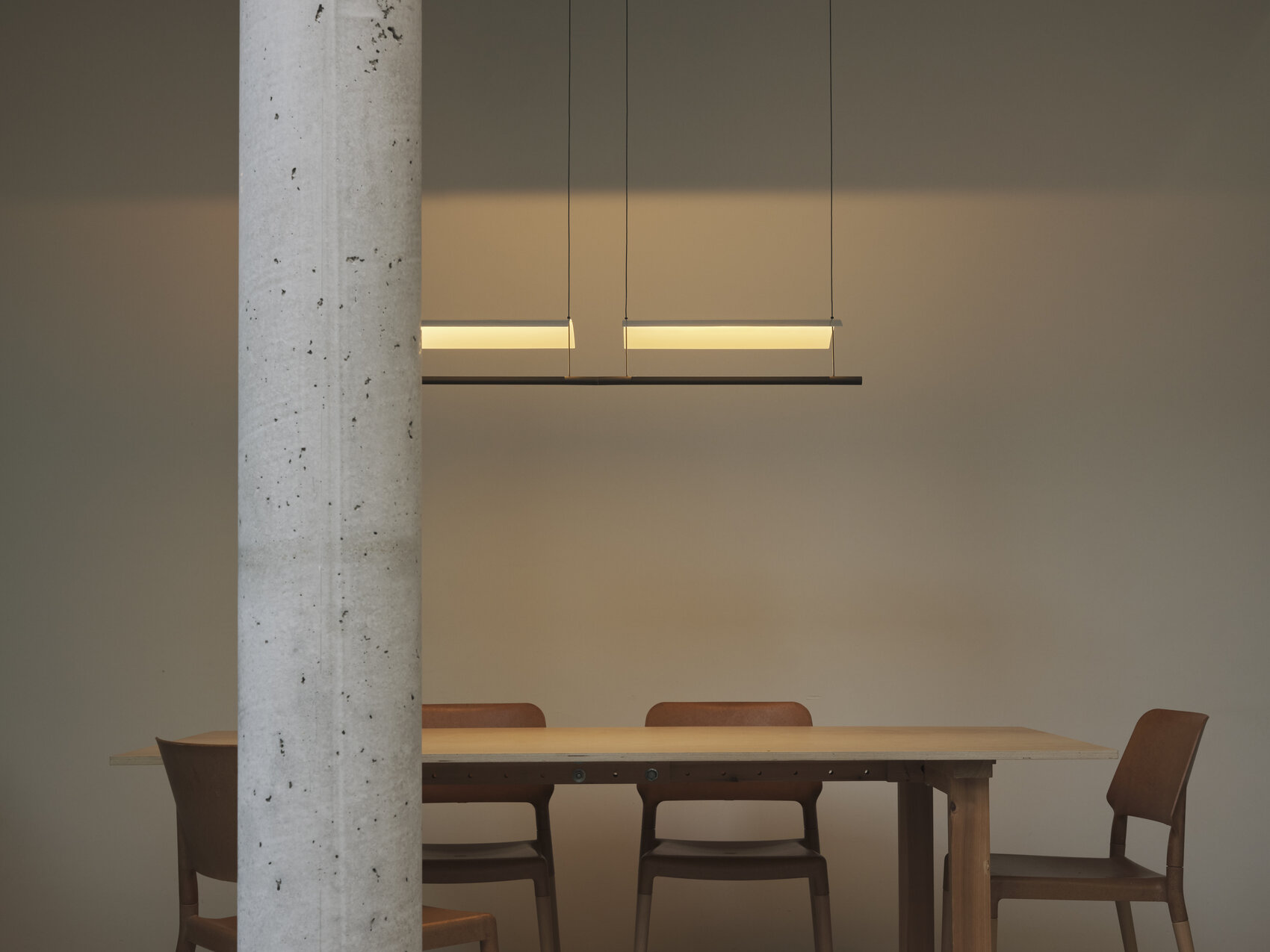

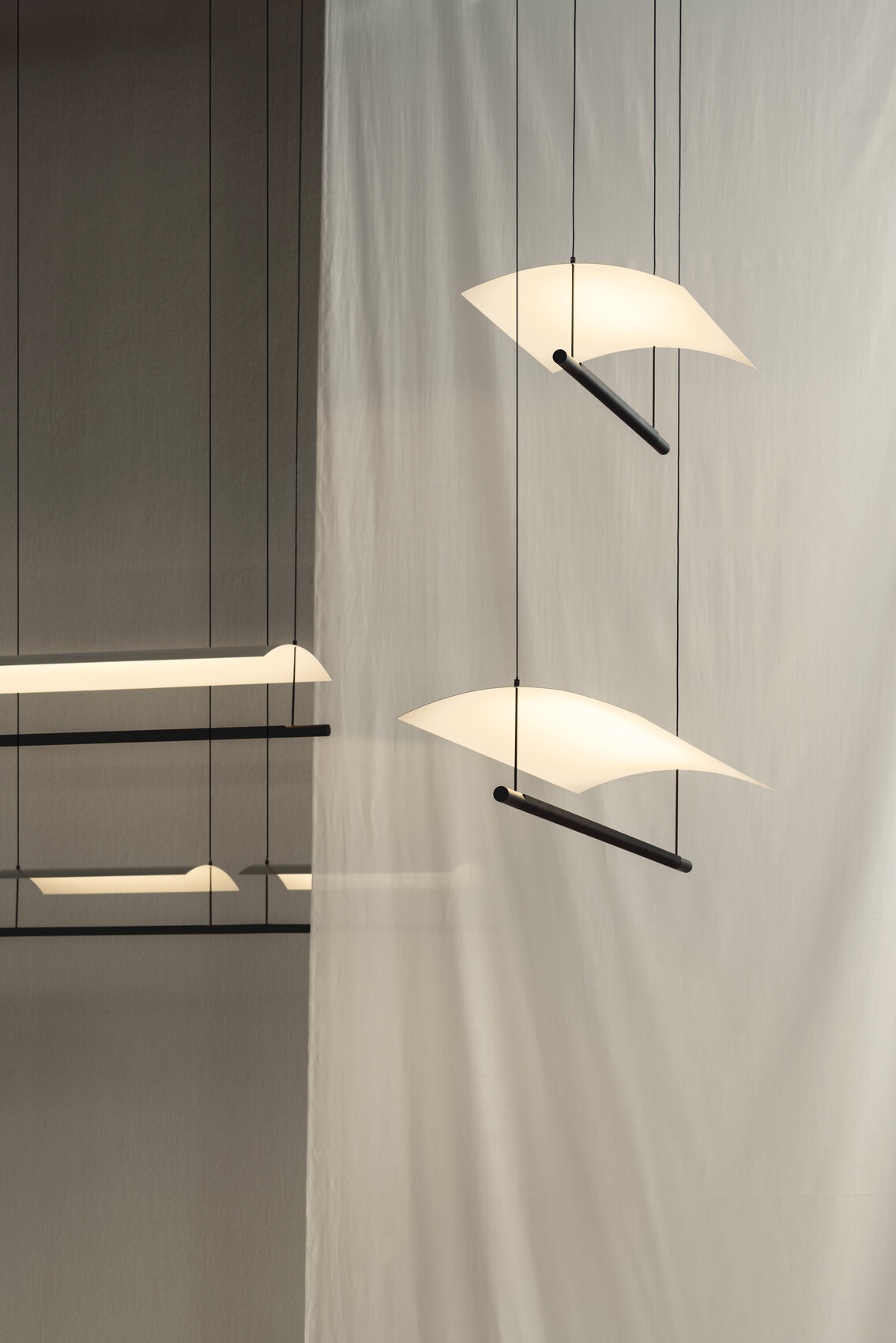

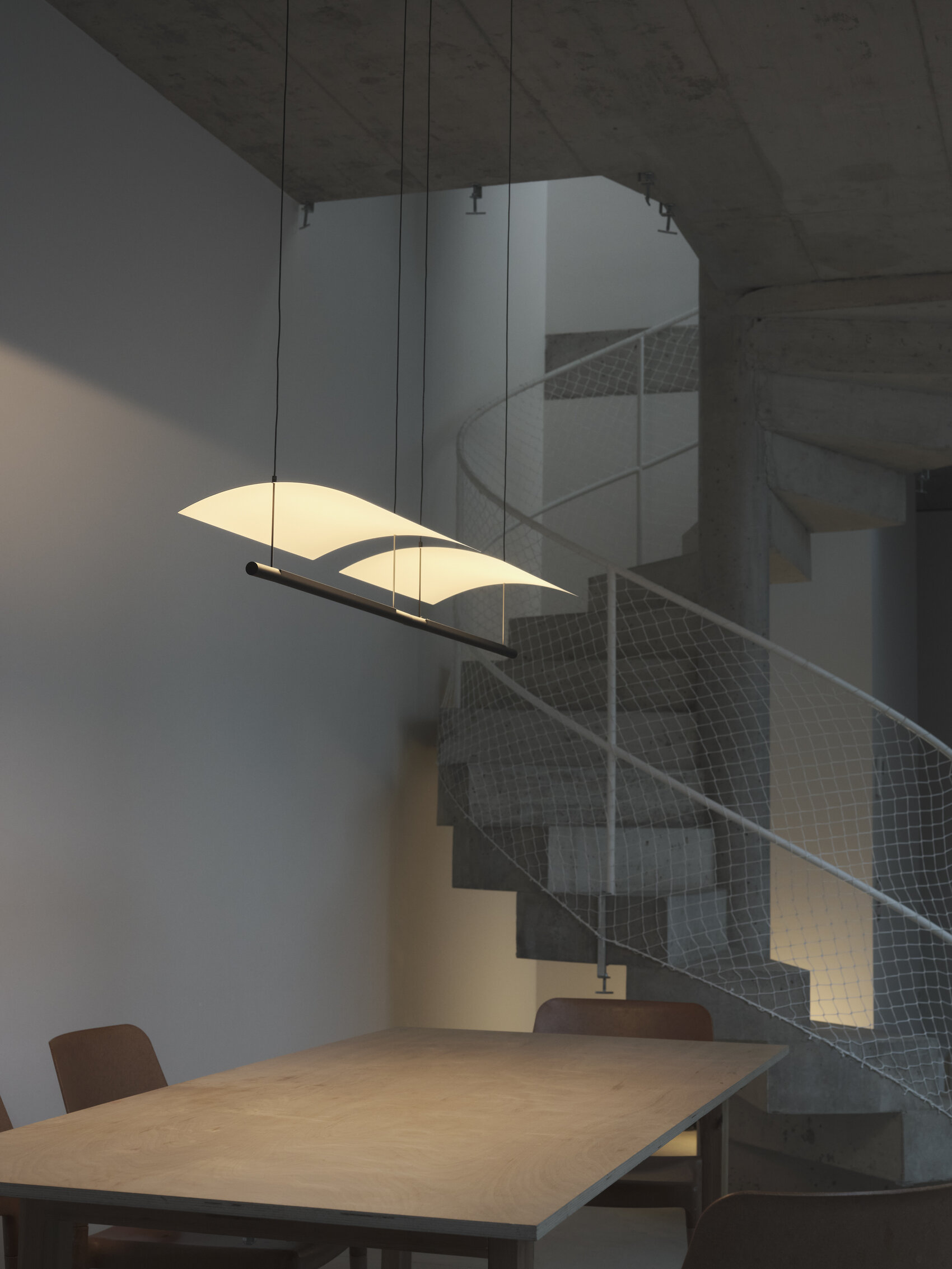

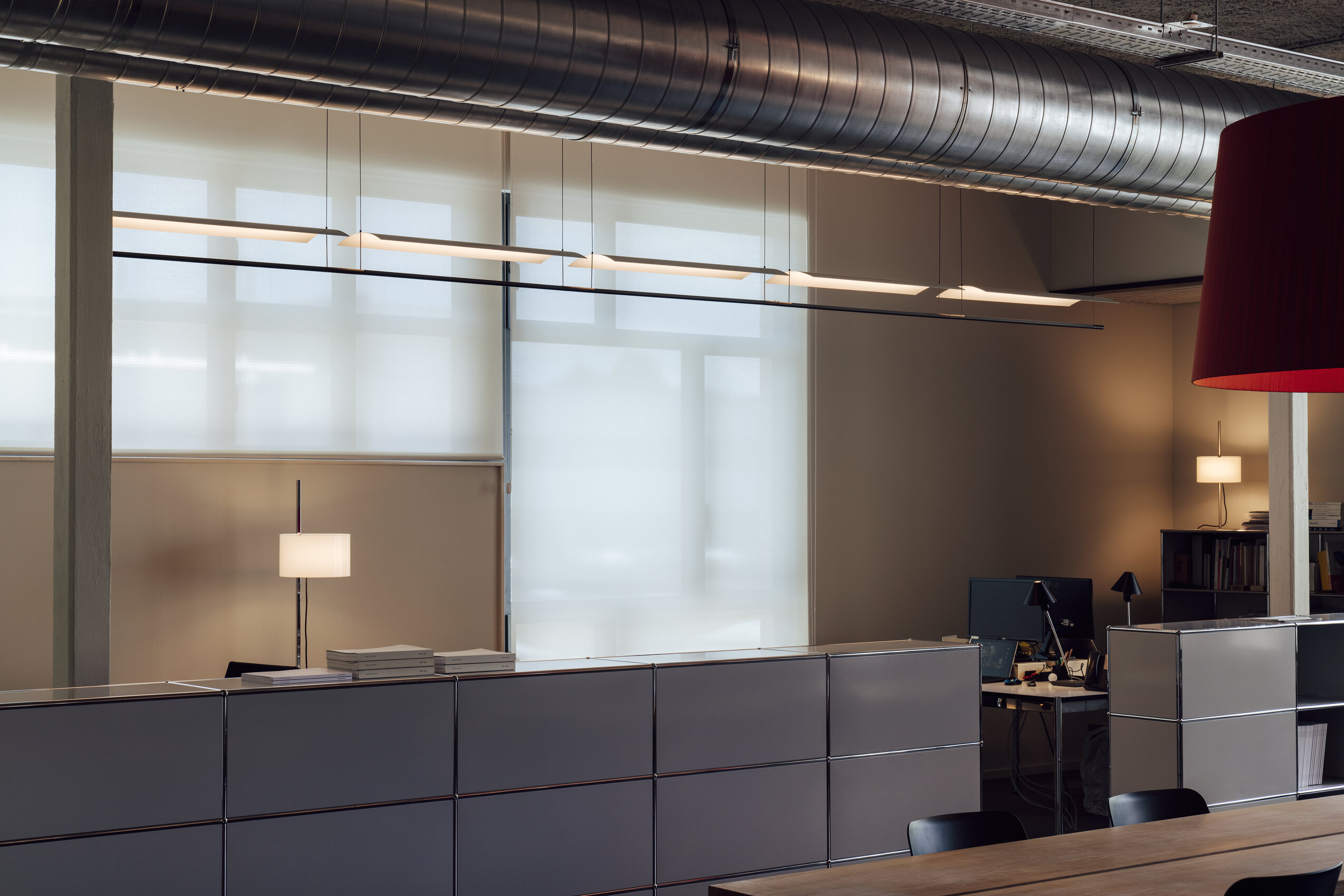

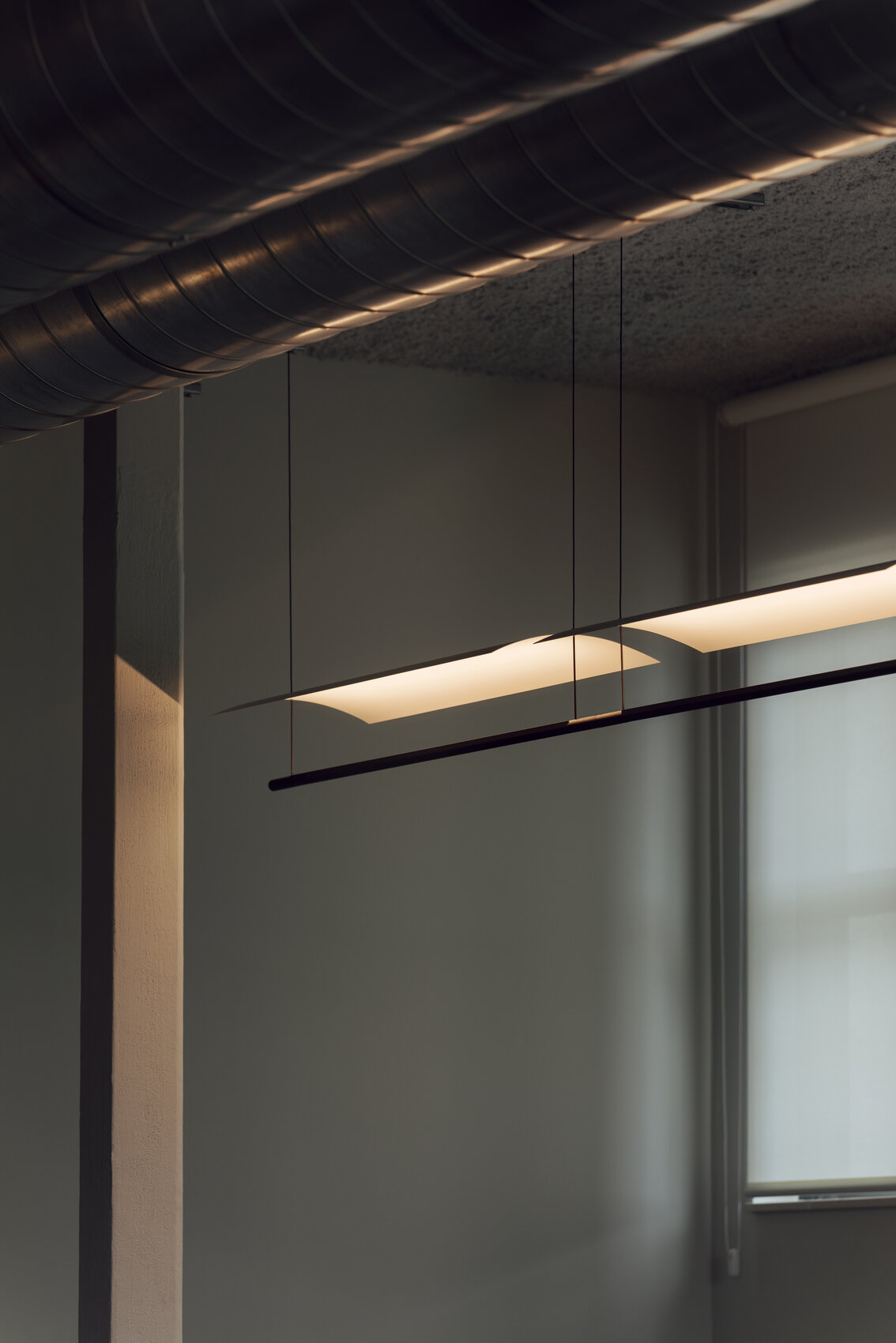

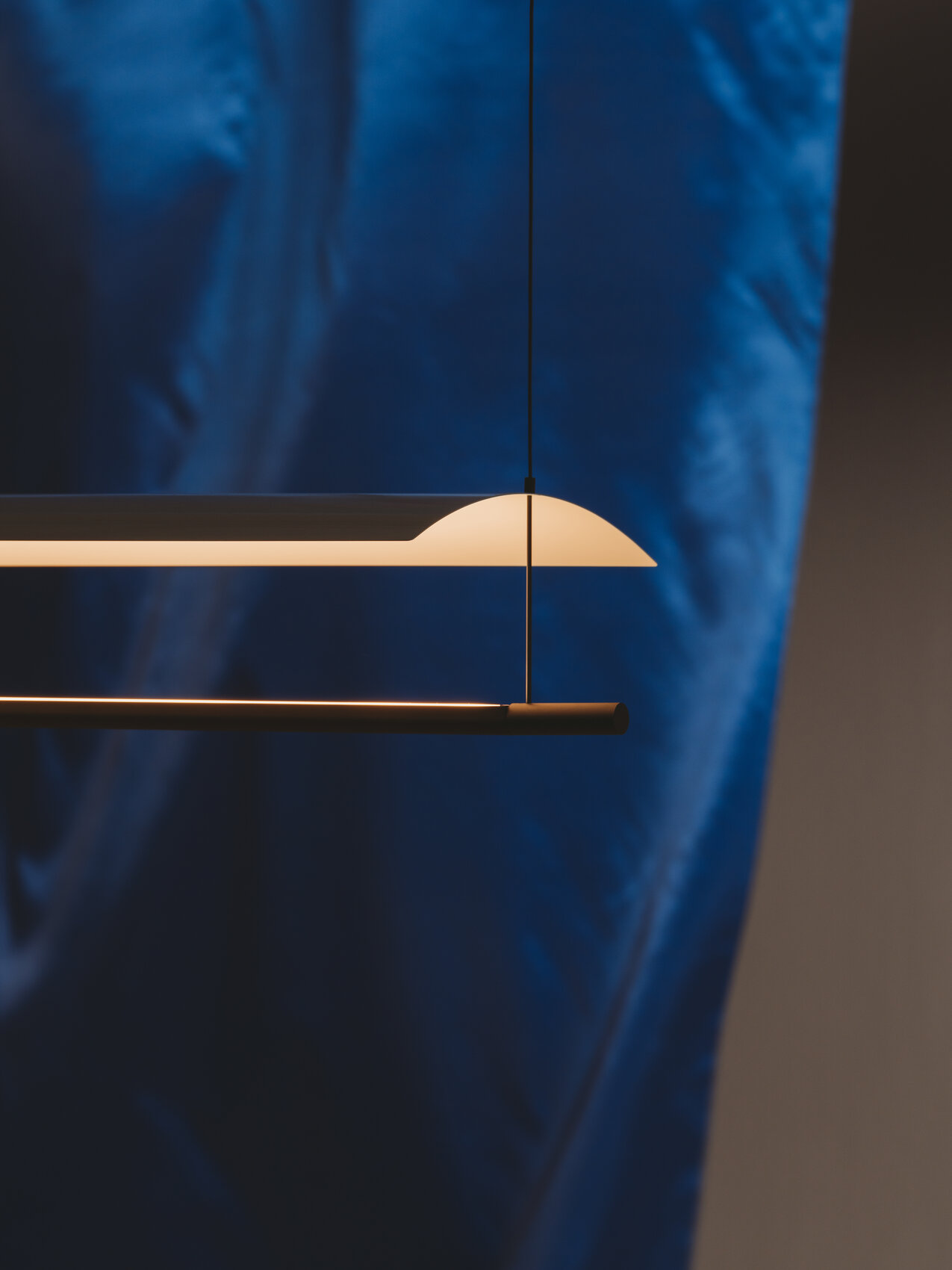

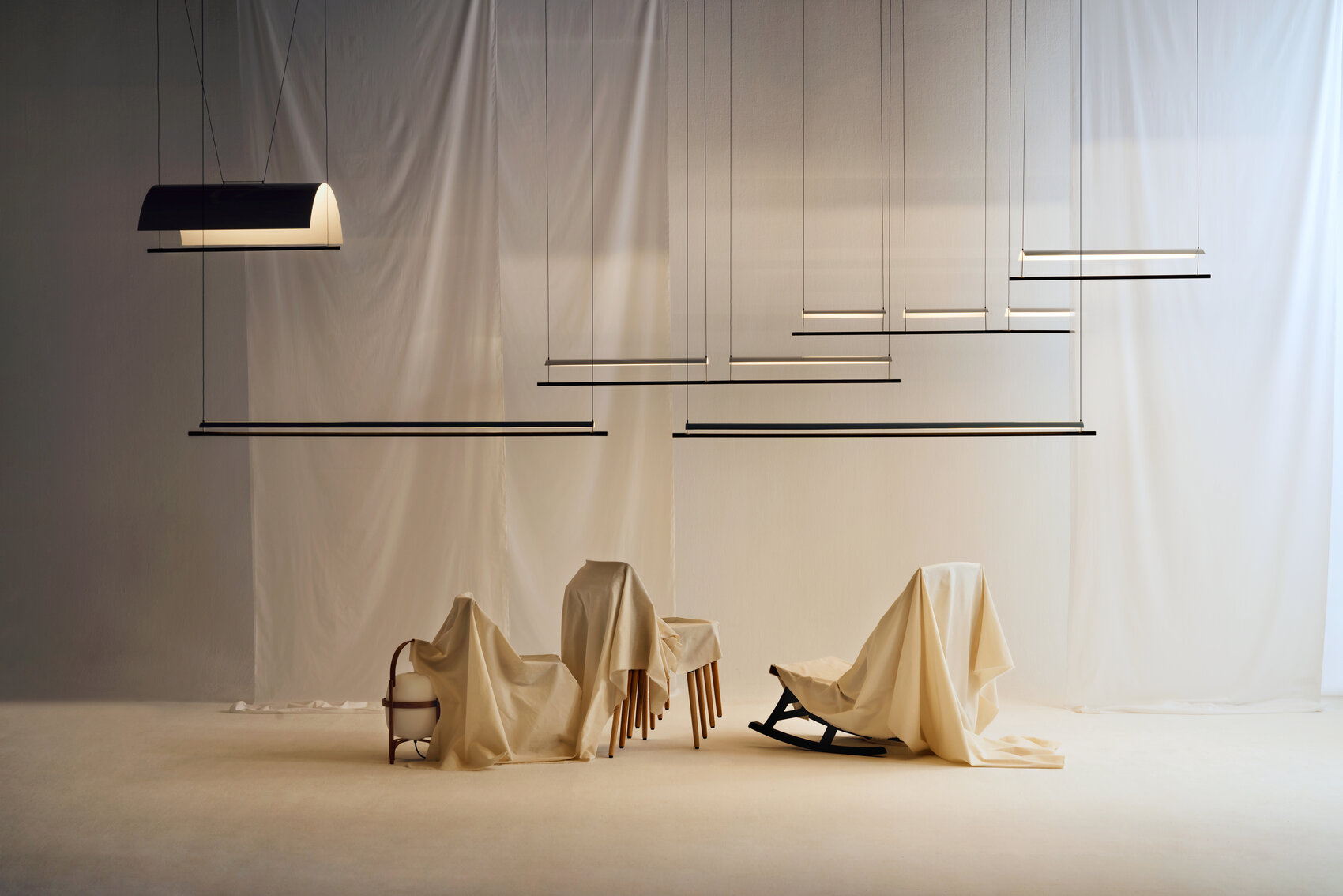

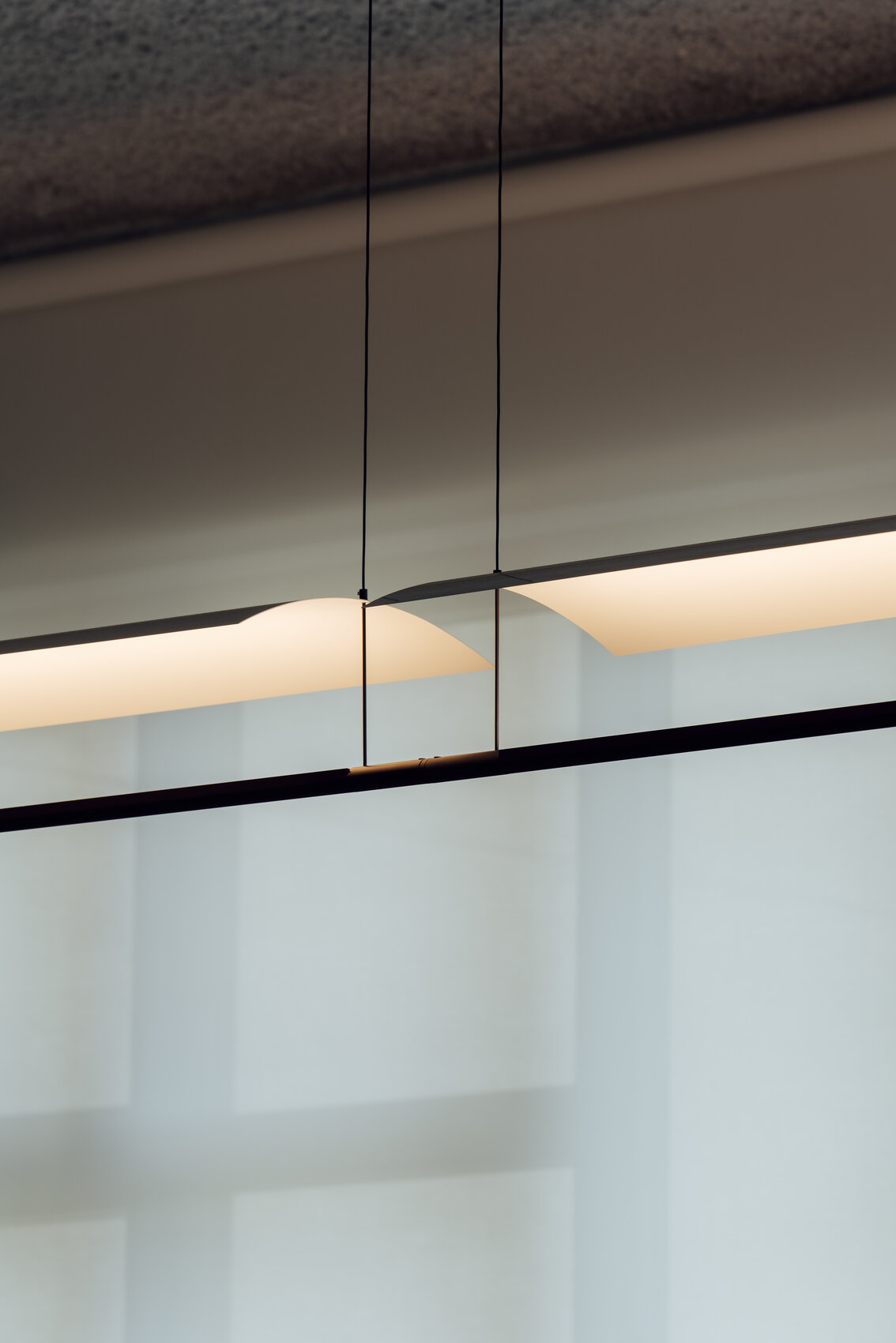

A line of light and a thin metal sheet create a soft but effective levity. A marriage of the poetic and the practical, Lámina is a system that upholds the benefits of reflected light by using obvious shapes in different formats and with different shades that conceal nothing and show everything.


Dimension plane


Overview

White grey metallic shade with brilliant finish (exterior).
Black metal structure with matte finish.

Suitable for dimming 1-10V. Not included external dimmer switch. 1-10V.
Electric cable length: 5 m / 196.5"
Weight: 2.8 kg / 6.16 lib

Light sources

Light source included (dimmable): Built-in LED:. Output 18 W / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 711 lm
C.E.E. E.

Dimension plane


Overview

White grey metallic shade with brilliant finish (exterior).
Black metal structure with matte finish.

Suitable for dimming 1-10V. Not included external dimmer switch. 1-10V.
Electric cable length: 5 m / 196.5"
Weight: 3.7 kg / 8.14 lib

Light sources

Light source included (dimmable): Built-in LED:. Output 31 W / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 1.394 lm
C.E.E. E.

Dimension plane


Overview

White grey metallic shade with brilliant finish (exterior).
Black metal structure with matte finish.

Suitable for dimming 1-10V. Not included external dimmer switch. 1-10V.
Electric cable length: 5 m / 196.5"
Weight: 4 kg / 8.8 lib

Light sources

Light source included (dimmable): Built-in LED:. Output 31 W / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 1.422 lm
C.E.E. E.

Dimension plane


Overview

White grey metallic shade with brilliant finish (exterior).
Black metal structure with matte finish.

Suitable for dimming 1-10V. Not included external dimmer switch. 1-10V.
Electric cable length: 5 m / 196.5"
Weight: 6 kg / 13.2 lib

Light sources

Light source included (dimmable): Built-in LED:. Output 54 W / Input: 100 ~ 240 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 2.788 lm
C.E.E. E.

Available modifications

Remote driver.
We offer the possibility of adapting our products to the requirements of your contract project, modifying them to your needs. All customisations shall be studied upon request respecting the minimum quantity required. Contact us for customisations inqueries.
