Cirio Circular

Arola, Antoni

Biographies

Arola, Antoni

Antoni Arola, the winner of the 2003 National Design Prize, is a prominent figure on today’s design panorama in Spain. His versatility and insightful approach has enabled him to produce brilliant work, whether designing perfume bottles or lamps or undertaking major interior design projects. Arola perceives a symbolism and fascinating way of understanding life and its spaces in cultures vastly different to his own, such as those of Africa, which he incorporates into his work and everyday life. His vision reveals his facet as a sculptor, his passion for drawing and his interest in contemporary art.

Read more
| 2010
Pendant lamps

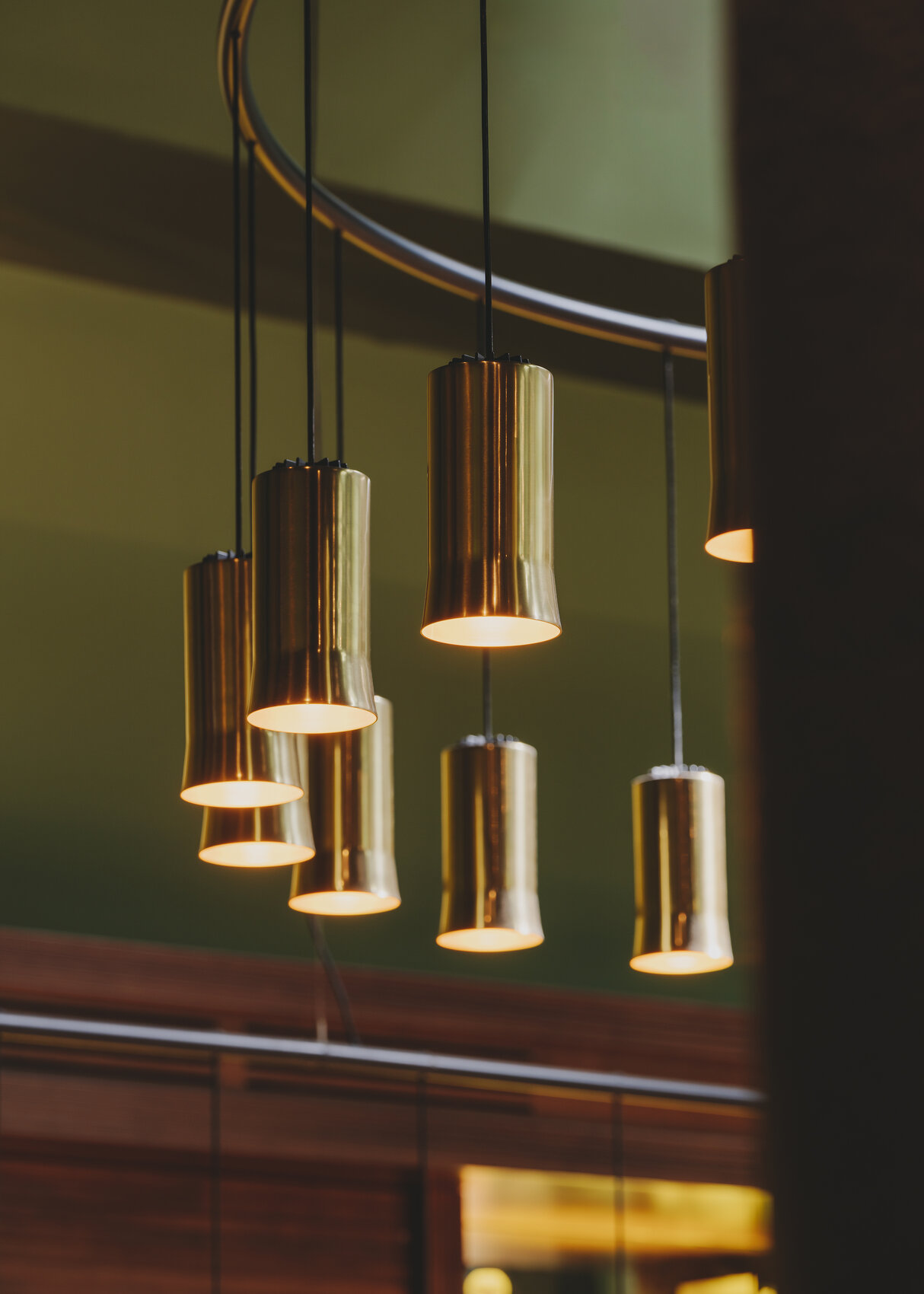

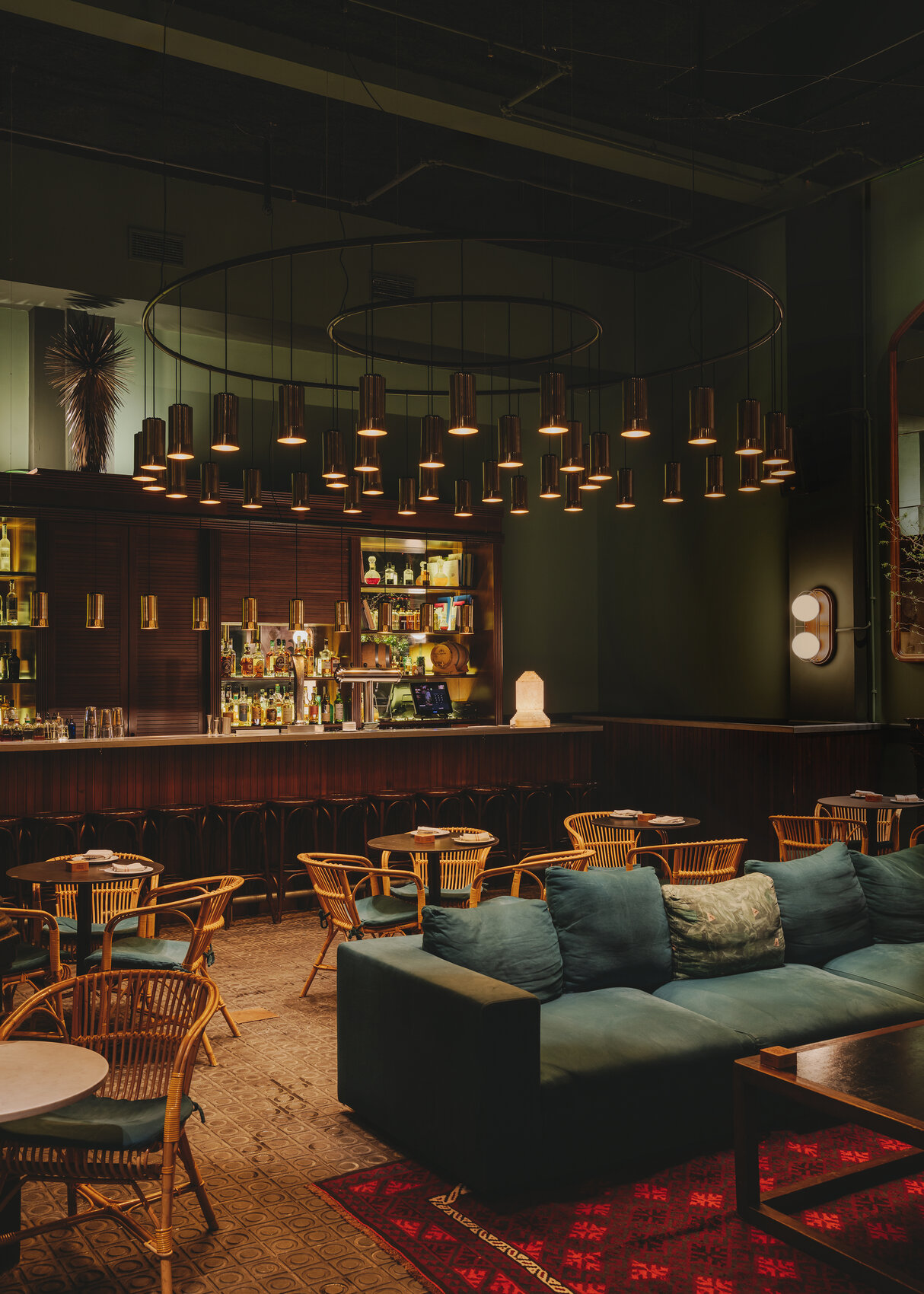

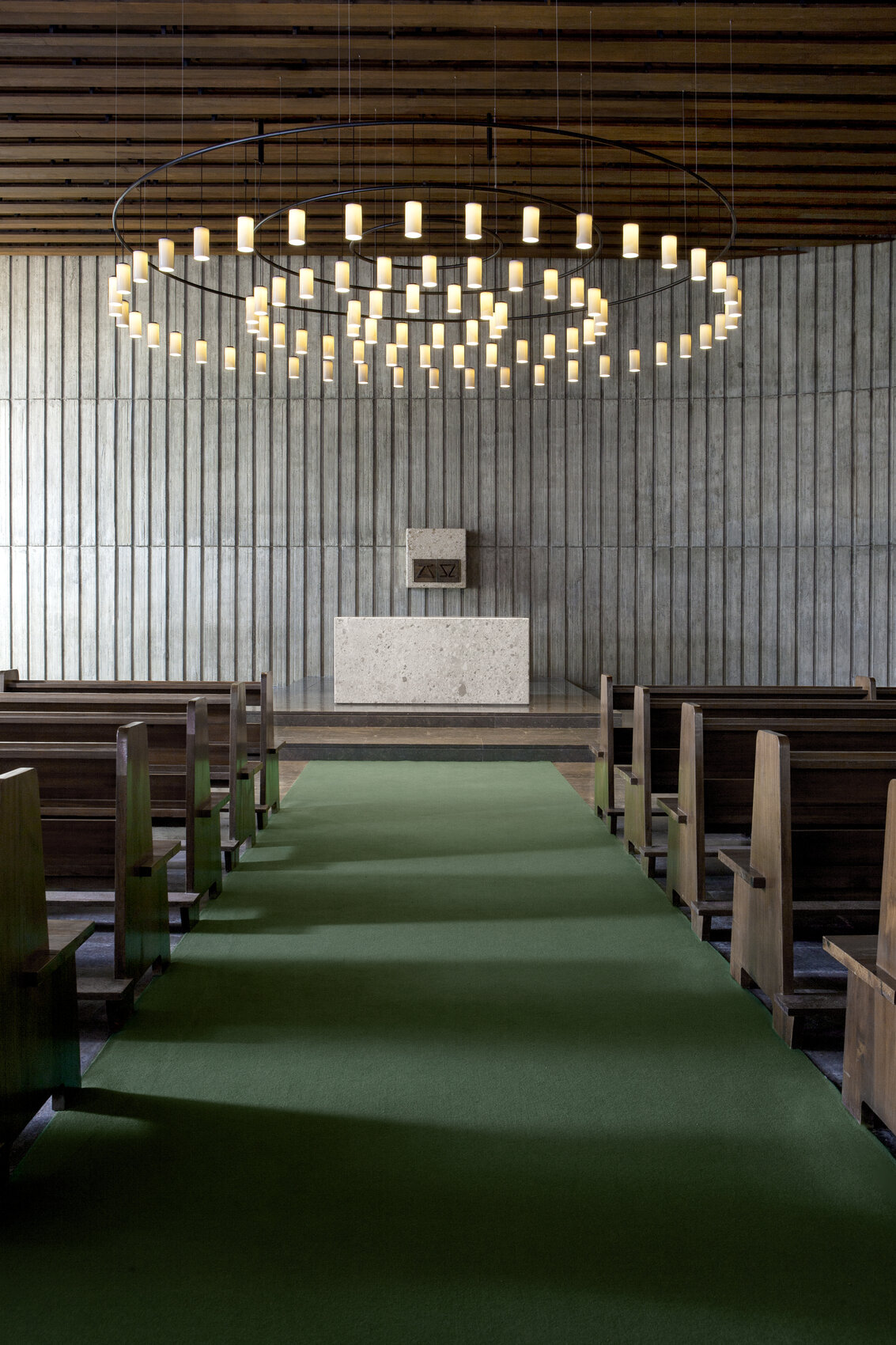

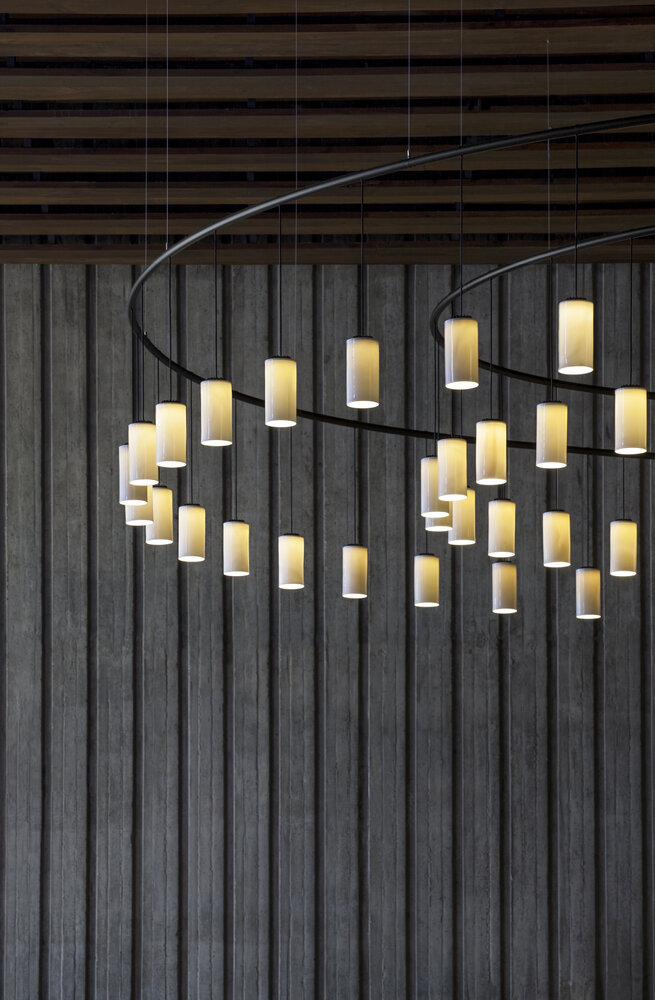

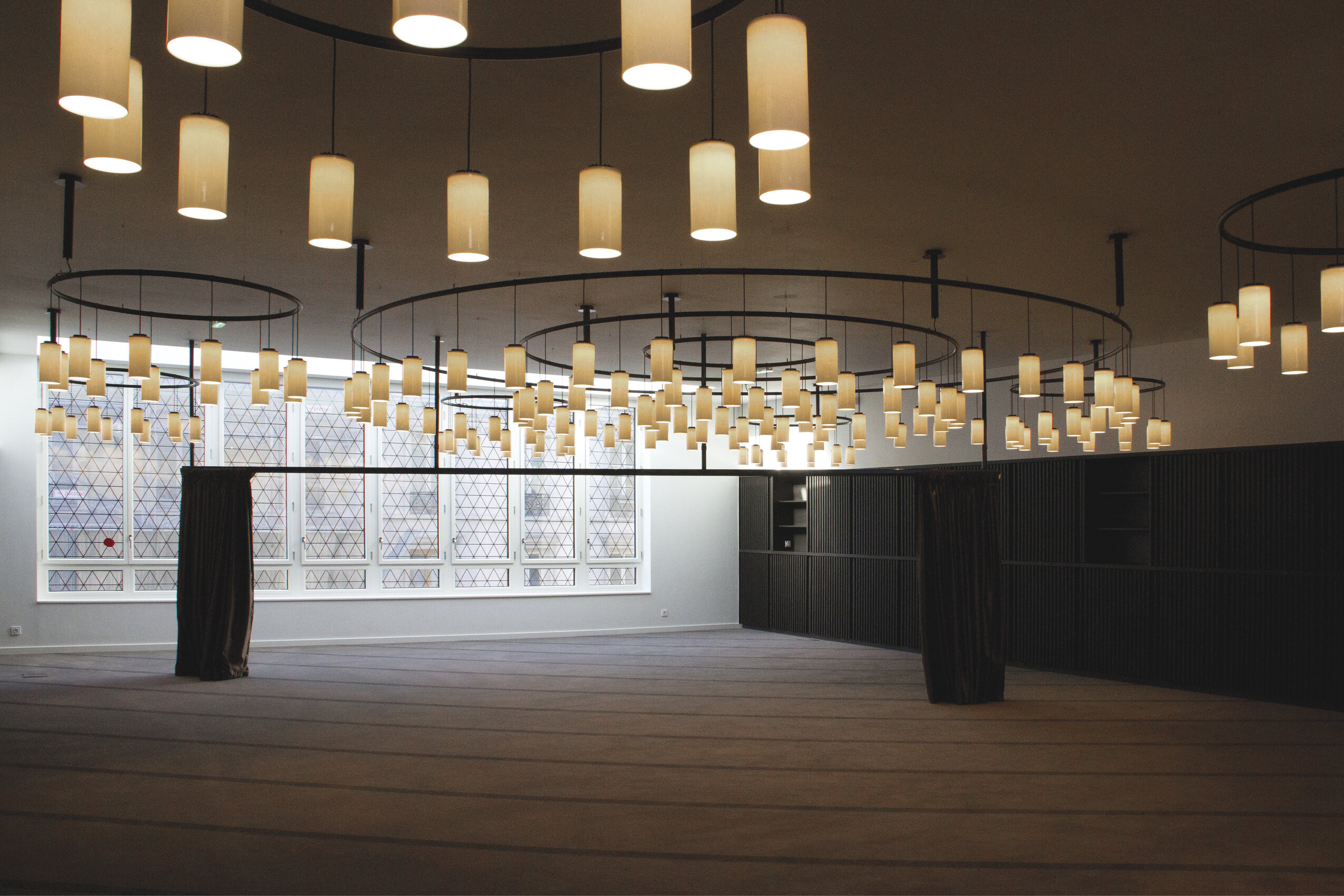

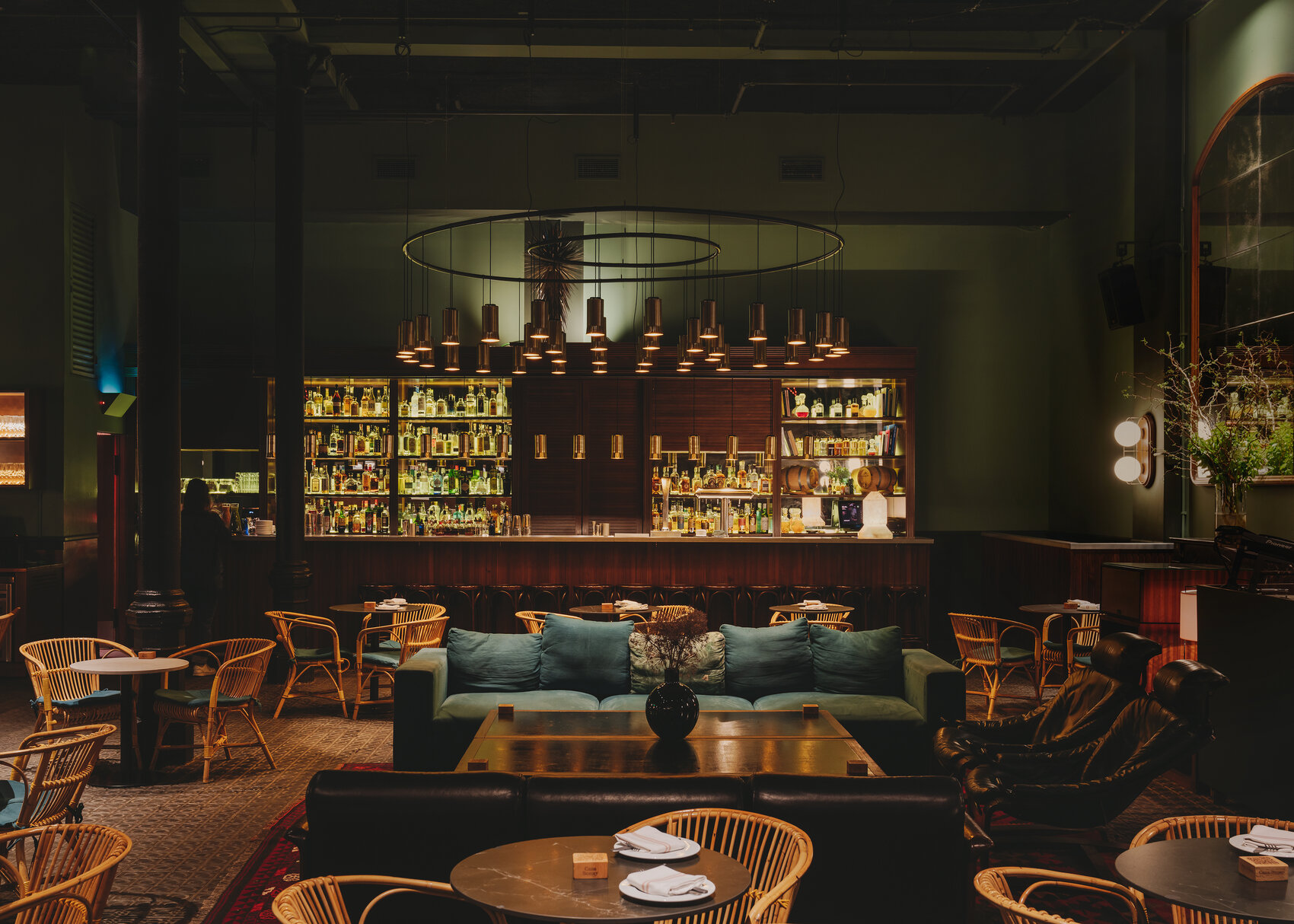

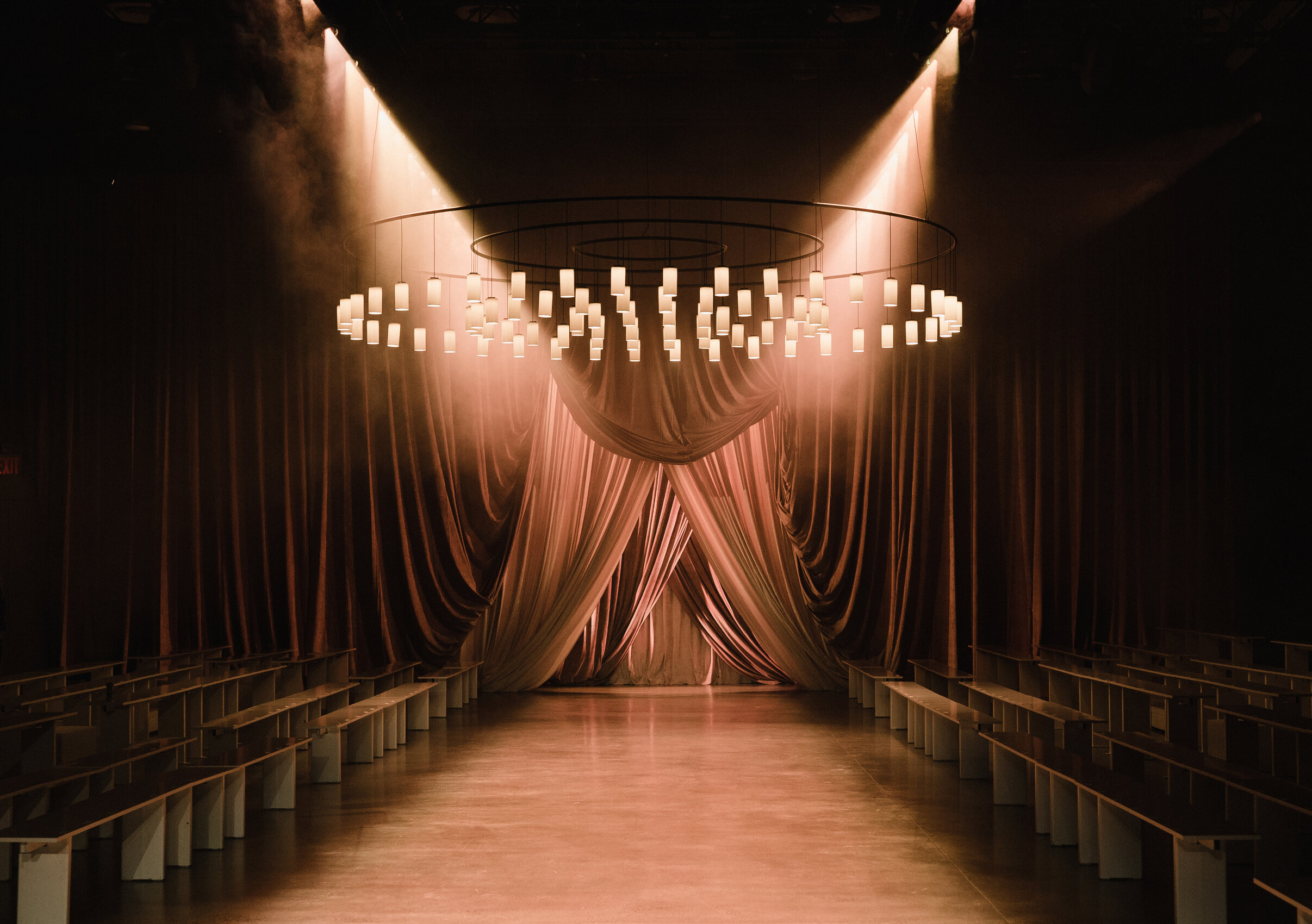

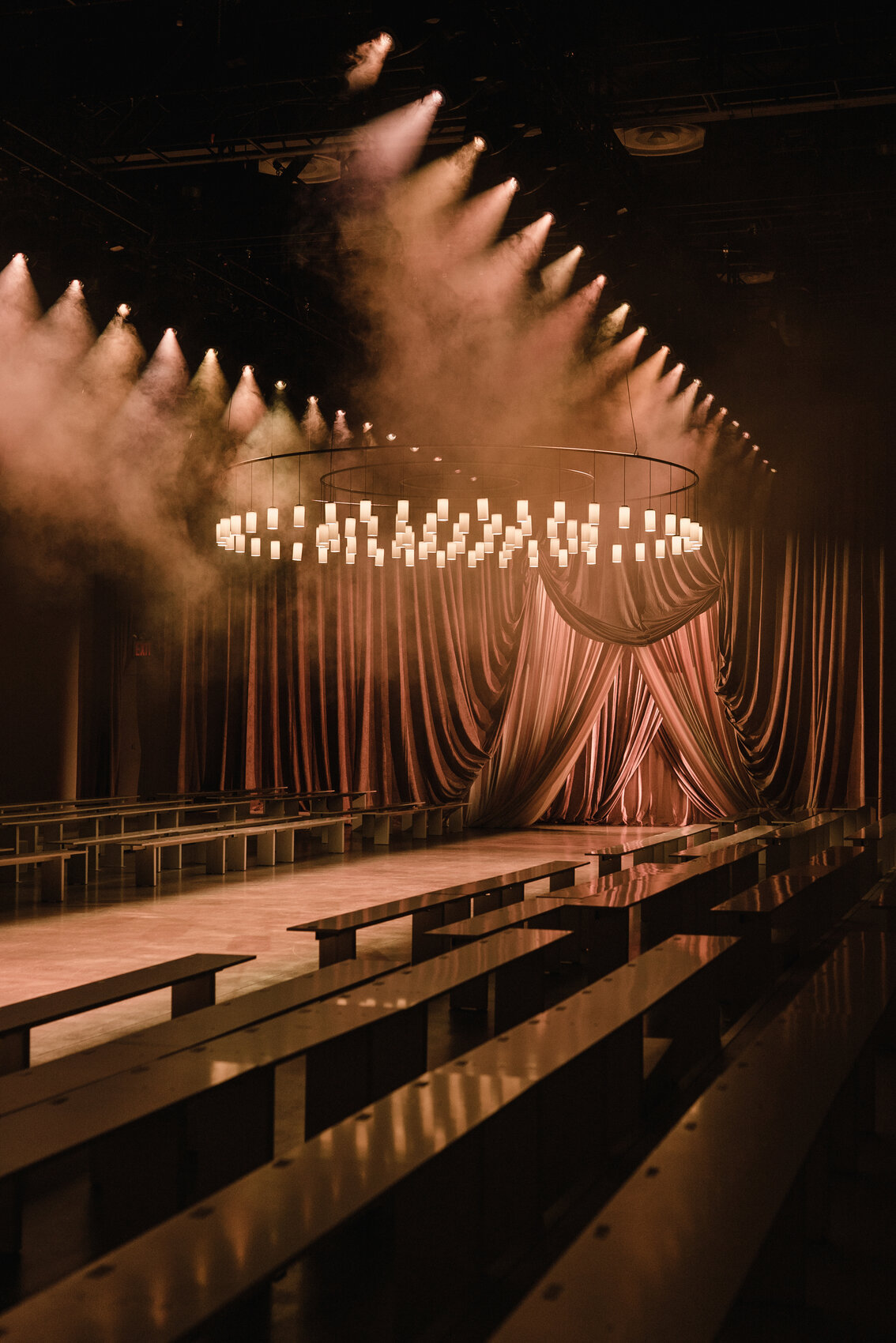

The Cirio system was devised with the aim of using LED technology for gentle lighting in public areas, and was inspired by the majestic lamps in the world’s great mosques. Its versatile structure allows for differing diameters to produce a range of formats. The circular structures can be combined to create rich compositions.


Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.

Matte black aluminium circular structure ø 520 cm / 204.7” for 42 lampshades.
Rectangular matte black metallic canopy with built-in equipment.

Suitable for dimming 1-10V. Not included external dimmer switch. 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.5"
Weight: 47 kg / 103.4 lib - 47 kg / 103.4 lib

Light sources

Light sources included (dimmable): 42 x Built-in LED:Built-in LED:. Output 7,7 W / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 9.324 lm / Glass 27.510 lm / Brass 9.954 lm

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.

Matte black aluminium circular structure ø 300 cm / 118.1" for 28 lampshades.
Rectangular matte black metallic canopy with built-in equipment.

Suitable for dimming 1-10V. Not included external dimmer switch. 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.5"
Weight: 33 kg / 72.6 lib - 33 kg / 72.6 lib

Light sources

Light sources included (dimmable): 28 x Built-in LED:Built-in LED:. Output 7,7 W / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 6.216 lm / Glass 18.340 lm / Brass 6.636 lm

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.

Matte black aluminium circular structure ø 130 cm / 51.1” for 12 lampshades.

Suitable for dimming 1-10V. Not included external dimmer switch. 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.5"
Weight: 13 kg / 28.6 lib - 13 kg / 28.6 lib

Light sources

Light sources included (dimmable): 12 x Built-in LED:Built-in LED:. Output 7,7 W / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 2.664 lm / Glass 7.860 lm / Brass 2.844 lm

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.

Combination of the linear and circular M (ø 300 cm / 118.1”) models.
Matte black aluminium structure.
Rectangular matte black metallic canopy with built-in equipment.

Suitable for dimming 1-10V. Not included external dimmer switch. 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.5"
Weight: 46 kg / 101.2 lib - 46 kg / 101.2 lib

Light sources

Light sources included (dimmable): 38 x Built-in LED:Built-in LED:. Output 7,7 W / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 83
Lifetime: 40.000 h
Luminous flux: Porcelain 8.436 lm / Glass 24.890 lm / Brass 9.006 lm

Available modifications

Other ring dimensions.
Other structure shapes.
Remote driver.
We offer the possibility of adapting our products to the requirements of your contract project, modifying them to your needs. All customisations shall be studied upon request respecting the minimum quantity required. Contact us for customisations inqueries.
