Cirio Chandelier
2015
Cirio Chandelier
Biographies
Antoni Arola
Antoni Arola, the winner of the 2003 National Design Prize, is a prominent figure on today’s design panorama in Spain. His versatility and insightful approach has enabled him to produce brilliant work, whether designing perfume bottles or lamps or undertaking major interior design projects. Arola perceives a symbolism and fascinating way of understanding life and its spaces in cultures vastly different to his own, such as those of Africa, which he incorporates into his work and everyday life. His vision reveals his facet as a sculptor, his passion for drawing and his interest in contemporary art.

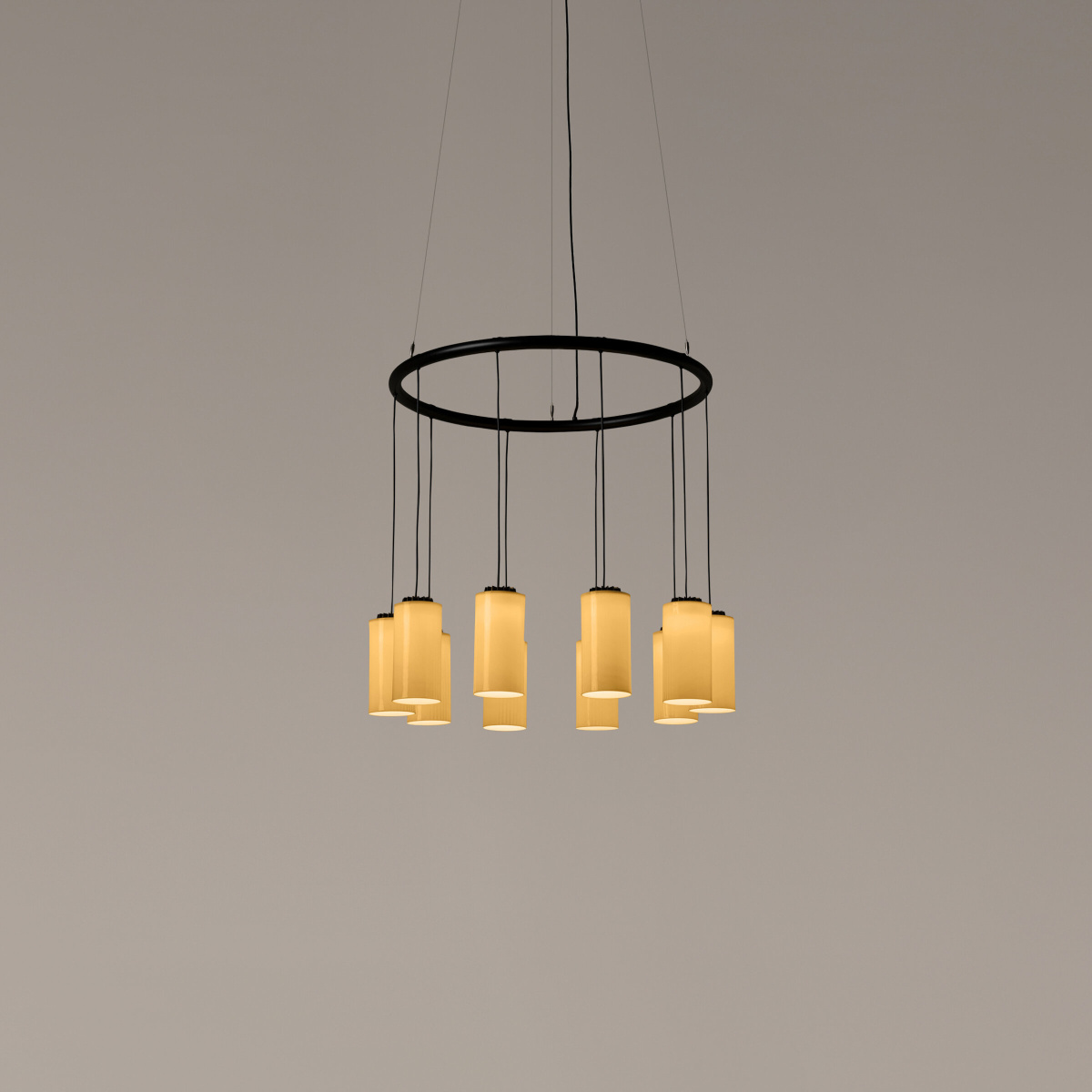

A refined take on the classic chandelier—no ornaments, just the visual richness of accumulated light at varying heights and densities.
Overview
Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
4 lampshade options: white porcelain, white Pana porcelain, white opal glass and polished brass.
Matte black aluminium circular structure ø 100 cm / 39.4” for 20 light sources.
Adjustable matte black metallic circular canopy + equipment.
2 hanging system options: direct cable to ceiling plate or direct cable to ceiling.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.8"
Weight: 25,0 kg / 55.11 lb - 25,0 kg / 55.11 lb
Light sources
Built-in LED: Output 133 W / Input: 120 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 3.280 lm / Pana Porcelain 4.800 lm / Glass 11.180 lm / Brass 3.520 lm
C.E.E. F.
Overview
Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
4 lampshade options: white porcelain, white Pana porcelain, white opal glass and polished brass.
Matte black aluminium circular structure ø 100 cm / 39.4” for 20 light sources.
Adjustable matte black metallic circular canopy + equipment.
2 hanging system options: direct cable to ceiling plate or direct cable to ceiling.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.8"
Weight: 25,0 kg / 55.11 lb - 25,0 kg / 55.11 lb
Light sources
Built-in LED: Output 133 W / Input: 120 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 3.280 lm / Pana Porcelain 4.800 lm / Glass 11.180 lm / Brass 3.520 lm
C.E.E. F.
Overview
Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
4 lampshade options: white porcelain, white Pana porcelain, white opal glass and polished brass.
Matte black aluminium circular structure ø 130 cm / 51.2” for 30 light sources.
Adjustable matte black metallic circular canopy + equipment.
2 hanging system options: direct cable to ceiling plate or direct cable to ceiling.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.8"
Weight: 35,0 kg / 77.16 lb - 35,0 kg / 77.16 lb
Light sources
Built-in LED: Output 201 W / Input: 120 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 4.920 lm / Pana Porcelain 7.200 lm / Glass 16.770 lm / Brass 5.280 lm
C.E.E. F.
Overview
Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
4 lampshade options: white porcelain, white Pana porcelain, white opal glass and polished brass.
Matte black aluminium circular structure ø 130 cm / 51.2” for 30 light sources.
Adjustable matte black metallic circular canopy + equipment.
2 hanging system options: direct cable to ceiling plate or direct cable to ceiling.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.8"
Weight: 35,0 kg / 77.16 lb - 35,0 kg / 77.16 lb
Light sources
Built-in LED: Output 201 W / Input: 120 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 4.920 lm / Pana Porcelain 7.200 lm / Glass 16.770 lm / Brass 5.280 lm
C.E.E. F.
Overview
Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
4 lampshade options: white porcelain, white Pana porcelain, white opal glass and polished brass.
Matte black aluminium circular structure ø 160 cm / 63" for 40 light sources.
Adjustable matte black metallic circular canopy + equipment.
2 hanging system options: direct cable to ceiling plate or direct cable to ceiling.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.8"
Weight: 50,0 kg / 110.23 lb - 50,0 kg / 110.23 lb
Light sources
Built-in LED: Output 266 W / Input: 120 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 6.560 lm / Pana Porcelain 9.600 lm / Glass 22.360 lm / Brass 7.040 lm
C.E.E. F.
Overview
Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
4 lampshade options: white porcelain, white Pana porcelain, white opal glass and polished brass.
Matte black aluminium circular structure ø 160 cm / 63" for 40 light sources.
Adjustable matte black metallic circular canopy + equipment.
2 hanging system options: direct cable to ceiling plate or direct cable to ceiling.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.8"
Weight: 50,0 kg / 110.23 lb - 50,0 kg / 110.23 lb
Light sources
Built-in LED: Output 266 W / Input: 120 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 6.560 lm / Pana Porcelain 9.600 lm / Glass 22.360 lm / Brass 7.040 lm
C.E.E. F.
Overview
Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
4 lampshade options: white porcelain, white Pana porcelain, white opal glass and polished brass.
Matte black aluminum circular structure ø 70 cm / 27.6” for 10 light sources.
Adjustable matte black metallic circular canopy + equipment.
2 hanging system options: direct cable to ceiling plate or direct cable to ceiling.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.8"
Weight: 25,0 kg / 55.11 lb
Light sources
Built-in LED: Output 67 W / Input: 120 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 1.640 lm / Pana Porcelain 2.400 lm / Glass 5.590 lm / Brass 1.760 lm
Overview
Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
4 lampshade options: white porcelain, white Pana porcelain, white opal glass and polished brass.
Matte black aluminum circular structure ø 70 cm / 27.6” for 10 light sources.
Adjustable matte black metallic circular canopy + equipment.
2 hanging system options: direct cable to ceiling plate or direct cable to ceiling.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 5 m / 196.8"
Weight: 25,0 kg / 55.11 lb
Light sources
Built-in LED: Output 67 W / Input: 120 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 1.640 lm / Pana Porcelain 2.400 lm / Glass 5.590 lm / Brass 1.760 lm
