GT1000 / GT1500
2011
GT1000 / GT1500
Biographies
Equipo Santa & Cole
Comprising the people who work in Santa & Cole s technical department, led by the editors, the Santa & Cole Team s signature is featured in all our own designs. Some examples are the Trípode G5 lamp (1997), the HeadLed system (2013), the Arne streetlamp (2013) and its indoors version the Arne Domus (2015), the Sisisí system (1994) and the Básica lamp (1984), to name a few.

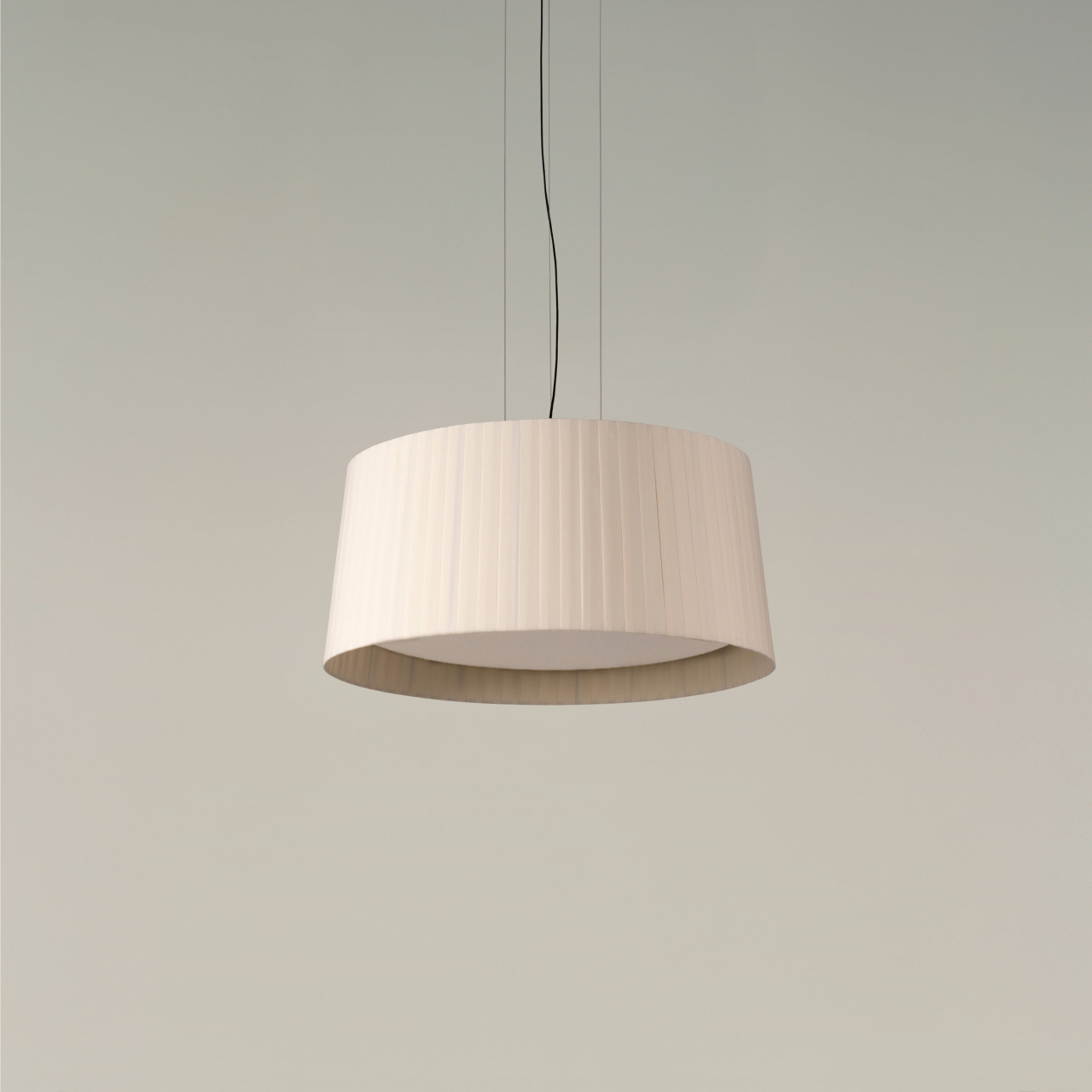

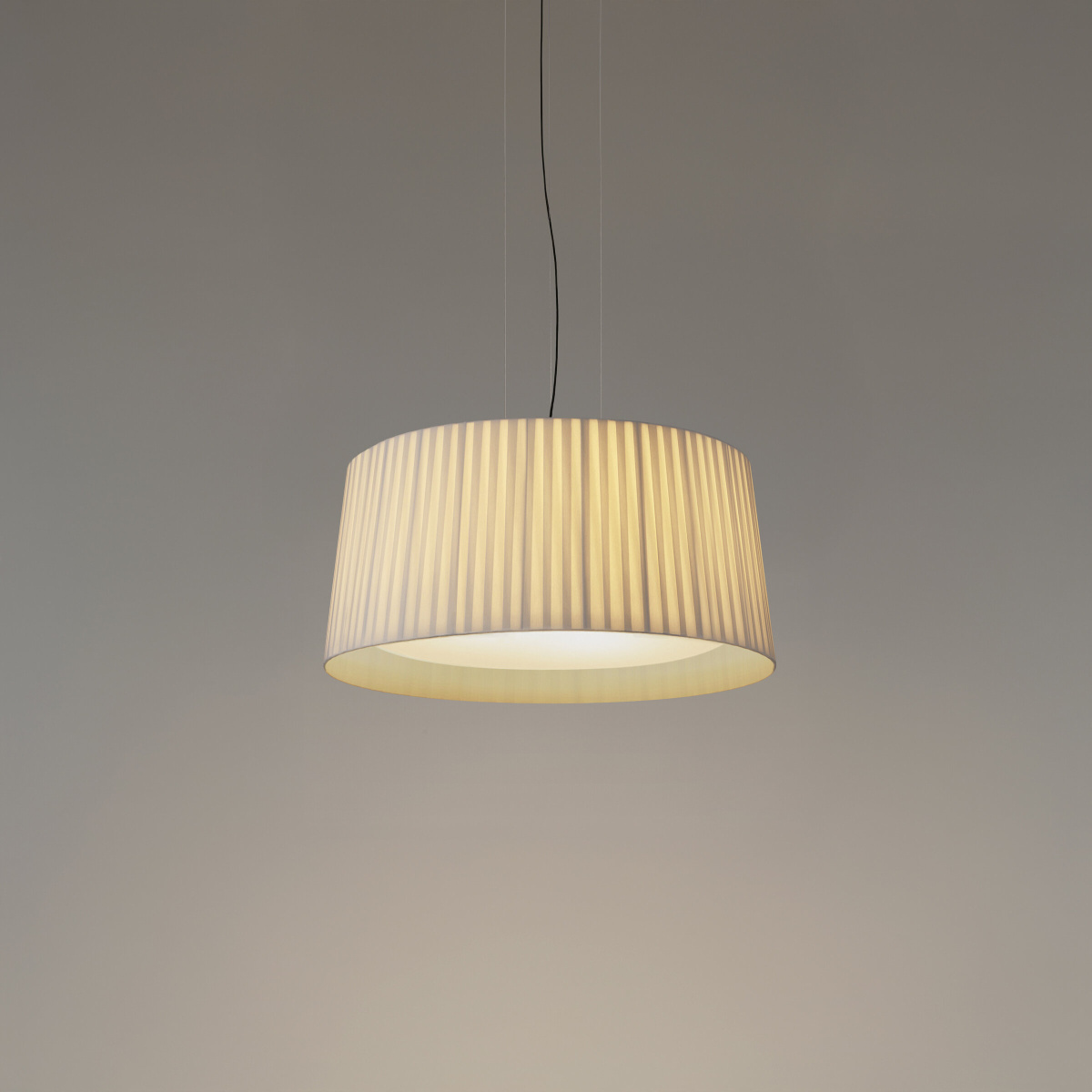

Colossal dimensions for the colorful family of ribboned drums, with light output adapted to their grand format.
Overview
Capsule with LED module, translucent white diffuser and heat sink with matte black finish.
Natural, red-amber or black ribbon lampshade and tile.
Black metallic circular canopy.
Lampshade: upper Ø 90 cm / 35.4” x lower Ø 100 cm / 39.3” x h. 44 cm / 17.3”.
Lower disc in white translucent PVC: Ø 83 cm. / 32.7”.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 8 m / 315.0"
Weight: 12,0 kg / 26.45 lb
Light sources
Built-in LED: Output 78 W / Input: 100 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 6.340 lm
C.E.E. F.
Overview
Capsule with LED module, translucent white diffuser and heat sink with matte black finish.
Natural, red-amber or black ribbon lampshade and tile.
Black metallic circular canopy.
Lampshade: upper Ø 90 cm / 35.4” x lower Ø 100 cm / 39.3” x h. 44 cm / 17.3”.
Lower disc in white translucent PVC: Ø 83 cm. / 32.7”.
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 8 m / 315.0"
Weight: 12,0 kg / 26.45 lb
Light sources
Built-in LED: Output 78 W / Input: 100 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 6.340 lm
C.E.E. F.
Overview
Capsule with LED module, translucent white diffuser and heat sink with matte black finish.
Natural, red-amber or black ribbon lampshade and tile.
Black metallic circular canopy.
Lampshade: upper Ø 133 cm / 7.5” x lower Ø 150 cm / 59.1” x h. 74 cm / 29,1”.
Lower disc in white translucent PVC: Ø 125 cm / 49.2".
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 8 m / 315.0"
Weight: 17,0 kg / 37.47 lb
Light sources
Built-in LED: Output 78 W / Input: 100 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 6.340 lm
C.E.E. F.
Overview
Capsule with LED module, translucent white diffuser and heat sink with matte black finish.
Natural, red-amber or black ribbon lampshade and tile.
Black metallic circular canopy.
Lampshade: upper Ø 133 cm / 7.5” x lower Ø 150 cm / 59.1” x h. 74 cm / 29,1”.
Lower disc in white translucent PVC: Ø 125 cm / 49.2".
Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 8 m / 315.0"
Weight: 17,0 kg / 37.47 lb
Light sources
Built-in LED: Output 78 W / Input: 100 ~ 277 Vac.
(50 Hz / 60 Hz). According to destination.
CCT: 2.700 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: 6.340 lm
C.E.E. F.
Available modifications
Other ribbon finishes.
Upper diffuser.
Diffuser
Ribbon lampshade: Natural
Ribbon lampshade: Red-amber
Ribbon lampshade: Black
Ribbon lampshade: Tile Raw Color
Ribbon lampshade: Mustard Raw Color
Ribbon lampshade: Green Raw Color
Diffuser
Ribbon lampshade: Natural
Ribbon lampshade: Red-amber
Ribbon lampshade: Black
Ribbon lampshade: Tile Raw Color
Ribbon lampshade: Mustard Raw Color
Ribbon lampshade: Green Raw Color
Diffuser
Ribbon lampshade: Natural
Ribbon lampshade: Red-amber
Ribbon lampshade: Black
Ribbon lampshade: Tile Raw Color
Ribbon lampshade: Mustard Raw Color
Ribbon lampshade: Green Raw Color
Diffuser
Ribbon lampshade: Natural
Ribbon lampshade: Red-amber
Ribbon lampshade: Black
Ribbon lampshade: Tile Raw Color
Ribbon lampshade: Mustard Raw Color
Ribbon lampshade: Green Raw Color
