TMC
TMM

Cirio Cascada

Arola, Antoni
2017

Cirio Cascada

Arola, Antoni

Biographies

Arola, Antoni

Antoni Arola, the winner of the 2003 National Design Prize, is a prominent figure on today’s design panorama in Spain. His versatility and insightful approach has enabled him to produce brilliant work, whether designing perfume bottles or lamps or undertaking major interior design projects. Arola perceives a symbolism and fascinating way of understanding life and its spaces in cultures vastly different to his own, such as those of Africa, which he incorporates into his work and everyday life. His vision reveals his facet as a sculptor, his passion for drawing and his interest in contemporary art.

Read more
| 2017
Pendant lamps

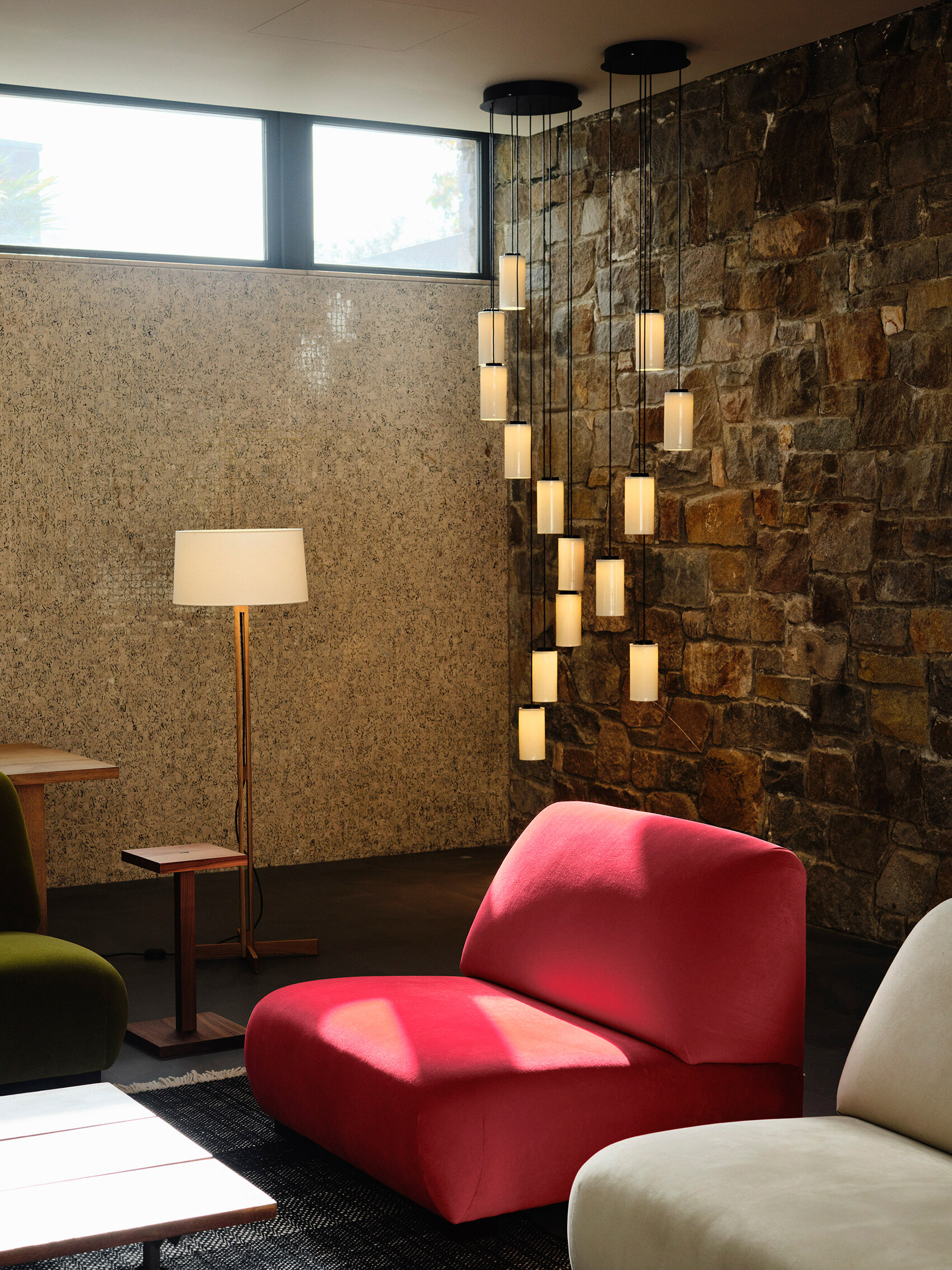

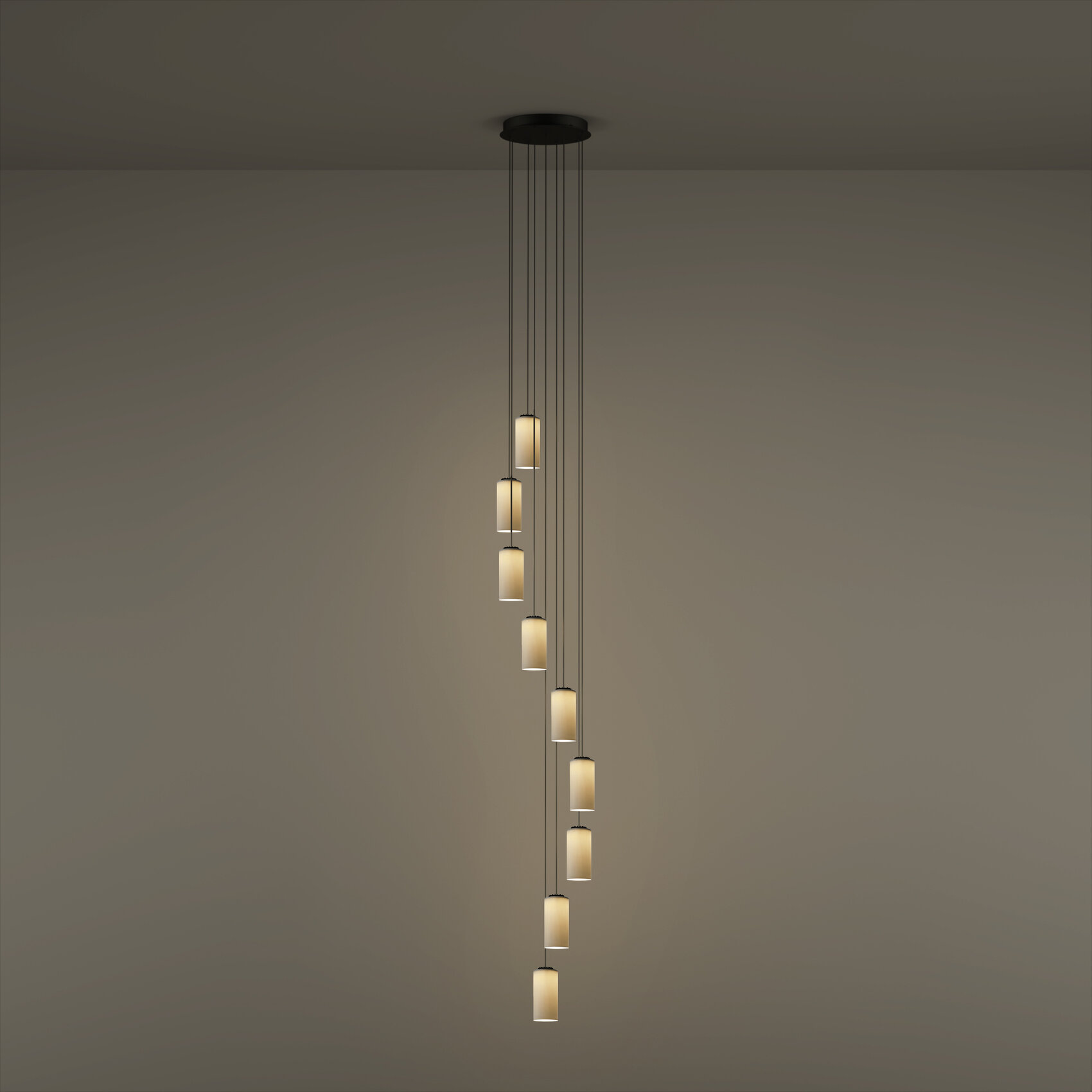

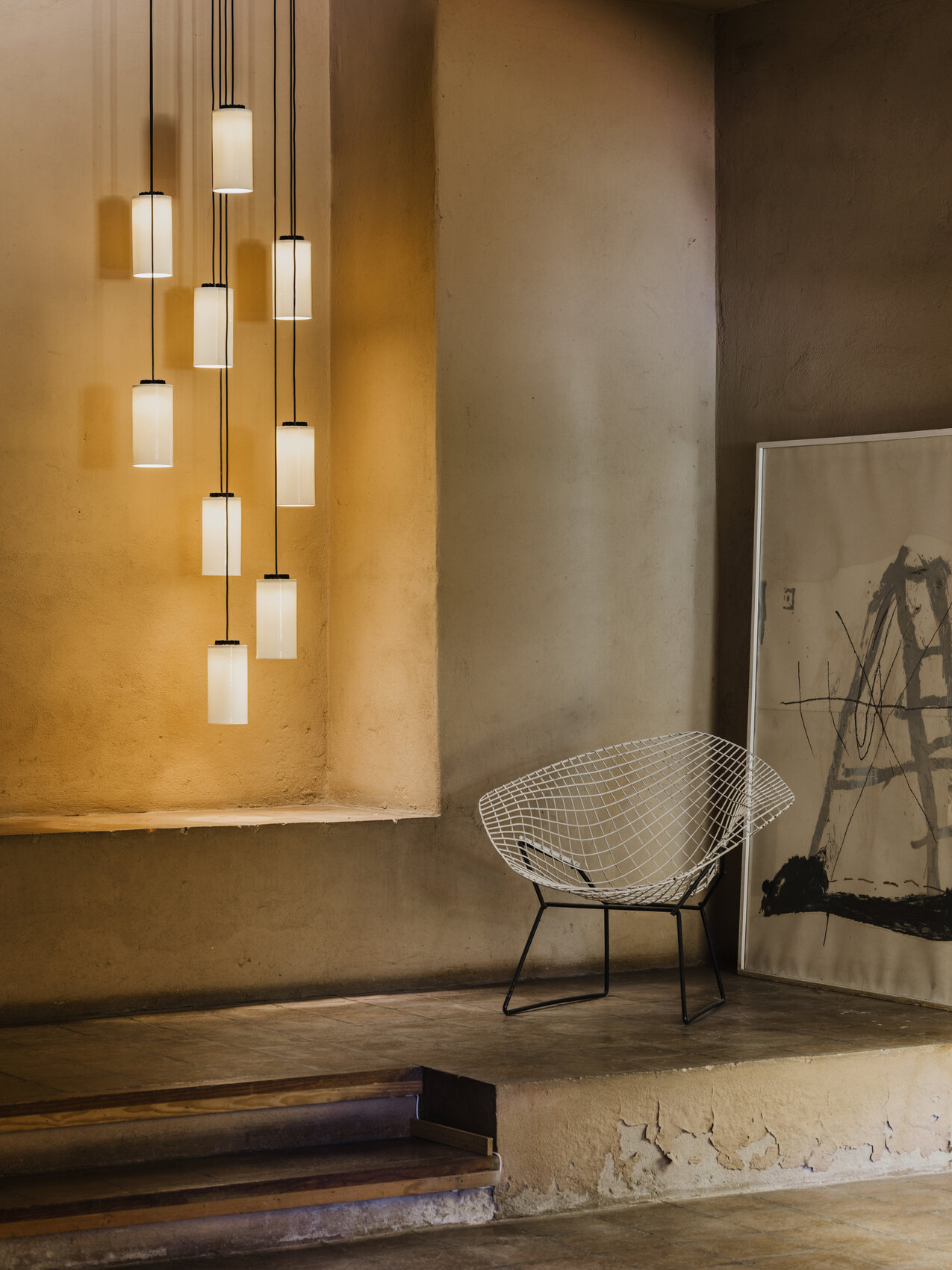

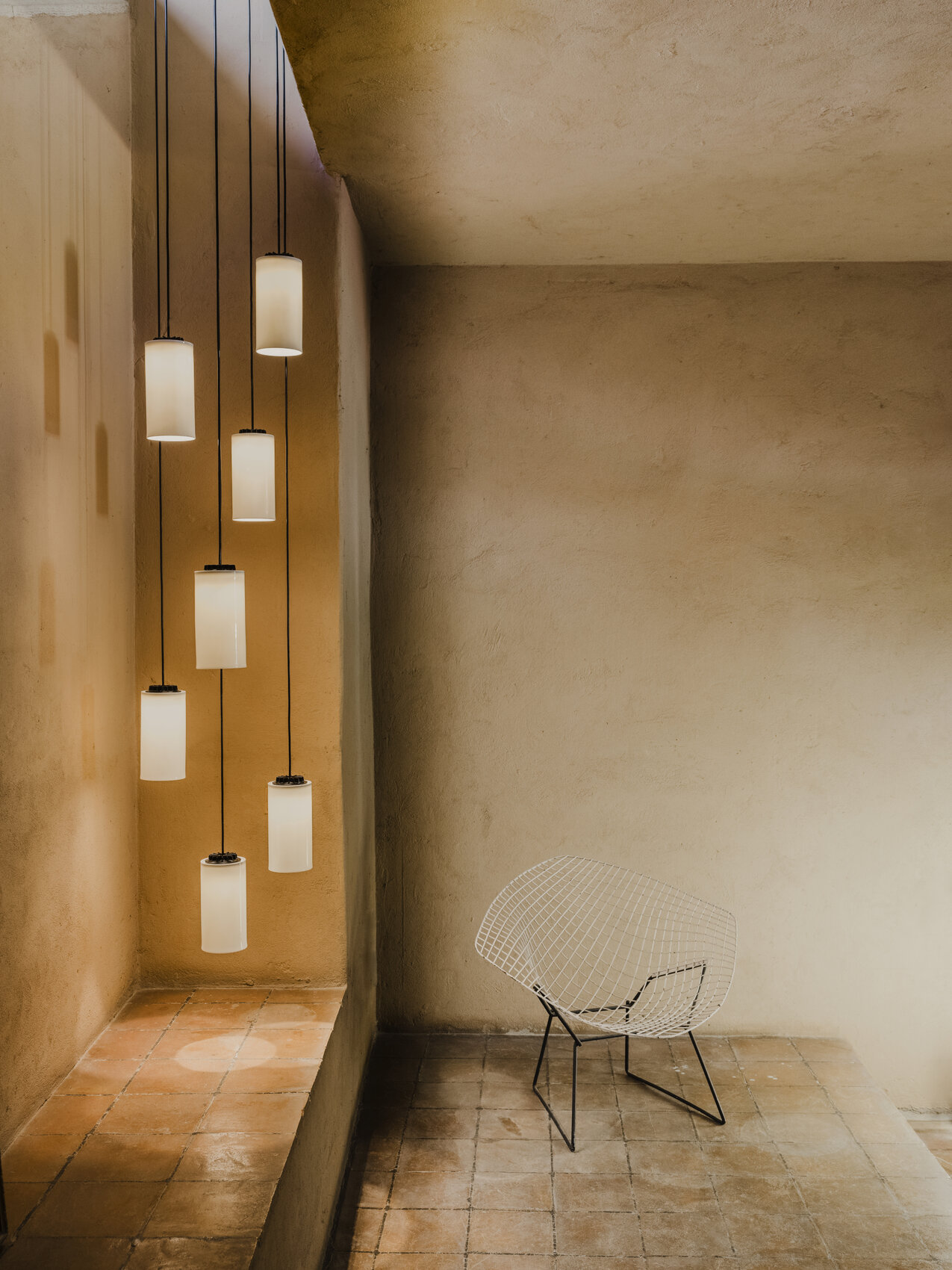

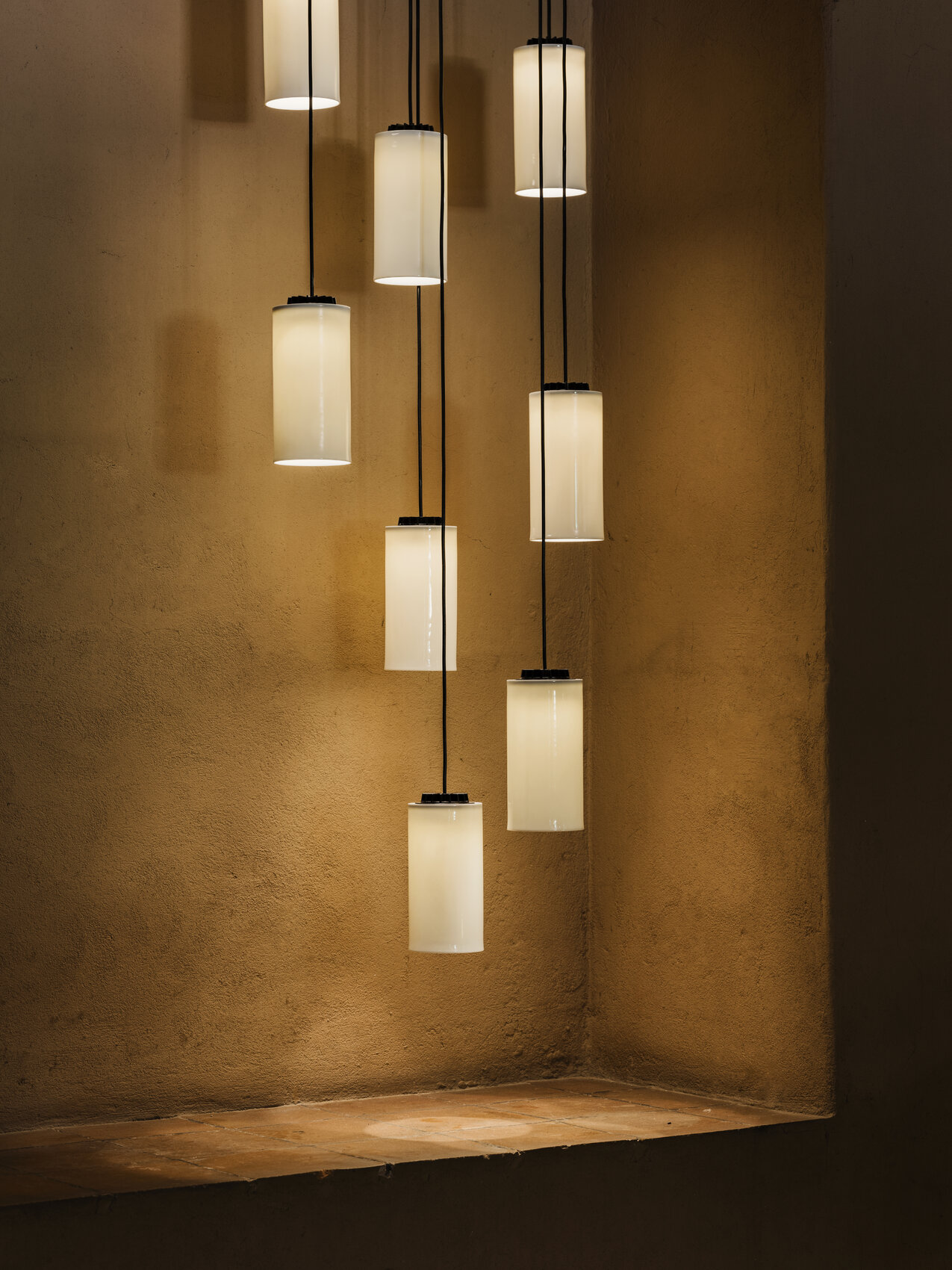

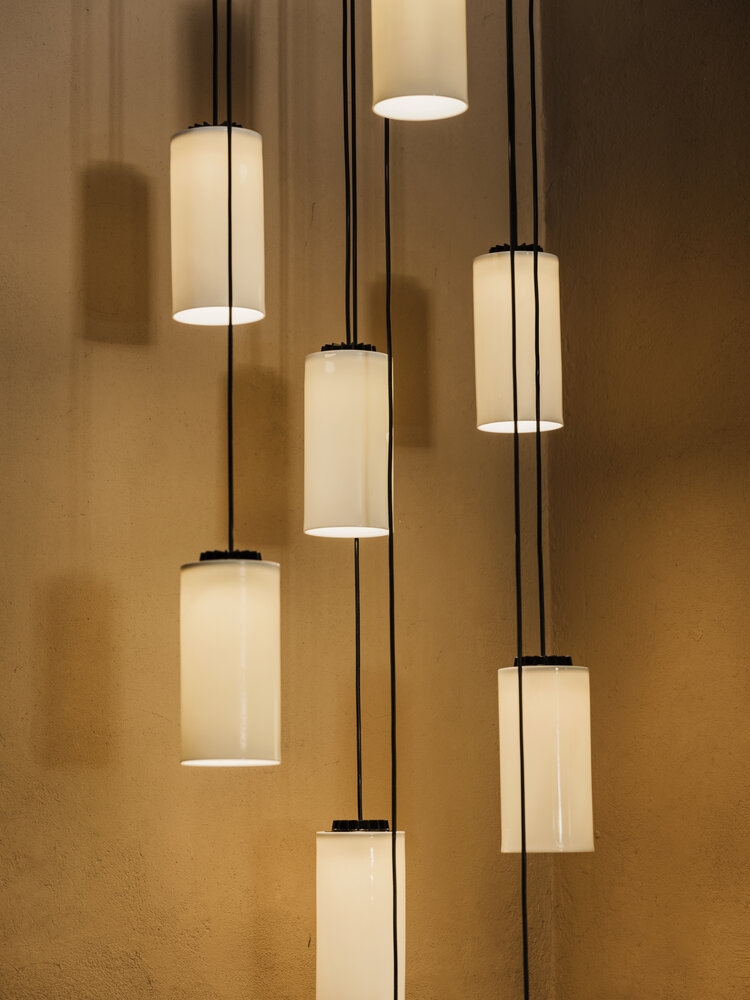

A bright and ornamental braid of cascading light to illuminate areas with different ceiling heights, stairwells or special corners. Its LED light source makes it compatible with a range of shades: from the crafted porcelain of Sargadelos (Galicia, Spain) suitable for the most admirable lightings, to translucent opal glass for stronger and more economical lighting, and the opaque elegance of brass for spotlighting.


Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.
Matte black metal canopies family (3 circular options and 1 rectangular) with integrated equipment.

96 cm x 32 cm / 37.8” x 12.6" for 12 lampshades.

Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 3 m / 117.9"
Weight: 18 kg / 39.6 lib - 18 kg / 39.6 lib

Light sources

Light sources included (dimmable): Built-in LED:. Output 110 W / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 2.664 lm / Glass 7.860 lm / Brass 2.844 lm
C.E.E. F.

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.
Matte black metal canopies family (3 circular options and 1 rectangular) with integrated equipment.

Ø 32 cm / 12.6” for 5 lampshades.

Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 3 m / 117.9"
Weight: 7 kg / 15.4 lib - 7 kg / 15.4 lib

Light sources

Light sources included (dimmable): Built-in LED:. Output 46,1 W / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 1.110 lm / Glass 3.275 lm / Brass 1.185 lm
C.E.E. F.

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.
Matte black metal canopies family (3 circular options and 1 rectangular) with integrated equipment.

Ø 32 cm / 12.6” for 7 lampshades.

Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 3 m / 117.9"
Weight: 9 kg / 19.8 lib - 9 kg / 19.8 lib

Light sources

Light sources included (dimmable): Built-in LED:. Output 64,6 W / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 1.554 lm / Glass 4.585 lm / Brass 1.659 lm
C.E.E. F.

Dimension plane


Overview

Capsule with LED module, translucent white diffuser and heat sink with black matte finish.
3 lampshade options: white porcelain, white opal glass and polished brass.
Matte black metal canopies family (3 circular options and 1 rectangular) with integrated equipment.

Ø 40 cm / 15.8” for 9 lampshades.

Suitable for dimming 1-10V. Not included external dimmer switch 1-10V.
Suitable for Junction Box (American version).
Electric cable length: 3 m / 117.9"
Weight: 12 kg / 26.4 lib - 12 kg / 26.4 lib

Light sources

Light sources included (dimmable): Built-in LED:. Output 83 W / Input: 120 ~ 277 Vac. (50 Hz / 60 Hz). According to destination.
CCT: 2.705 K
CRI: 90
Lifetime: 40.000 h
Luminous flux: Porcelain 1.998 lm / Glass 5.895 lm / Brass 2.133 lm
C.E.E. F.

We offer the possibility of adapting our products to the requirements of your contract project, modifying them to your needs. All customisations shall be studied upon request respecting the minimum quantity required. Contact us for customisations inqueries.
